Engine CPD140 / 14HP
- Payment Type:
- T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing Chiina |
|---|---|
| Payment Type: | T/T |
Product Description
Product Description
Product Description

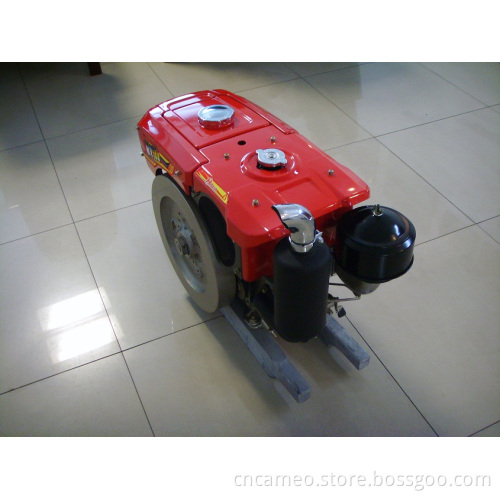

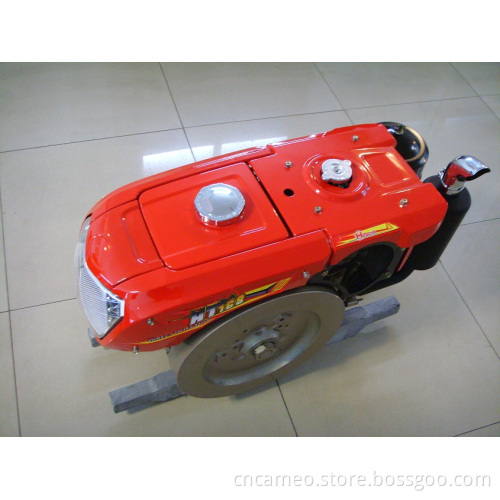

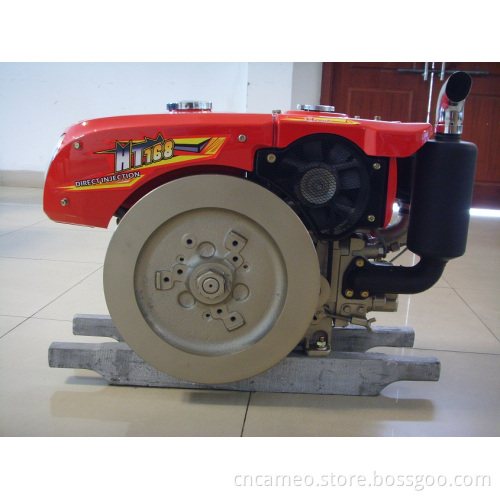

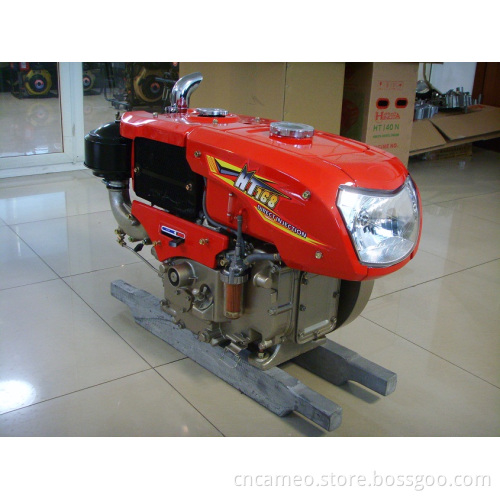

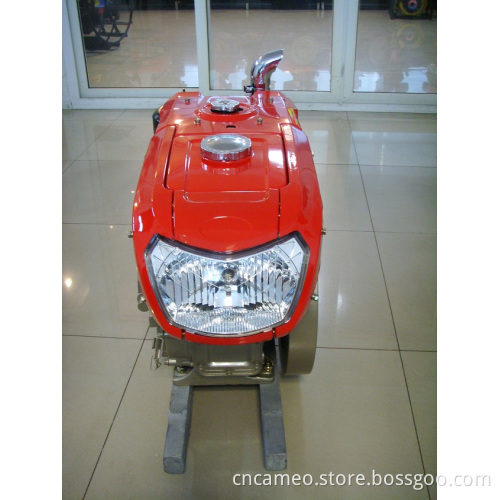

1. Single cylinder diesel engine, Power: 9.5HP-14HP
2. Kubota copy
3. Water cooling
4. Fuel: Diesel
5. Use: Tractor, generator.
2. Kubota copy
3. Water cooling
4. Fuel: Diesel
5. Use: Tractor, generator.
| MODEL | CP95 | CP110 | CP120 | CPD110 | CPD120 | CPD125 | CPD140 |
| Type | Water-cooled, 4-stroke, horizontal, diesel engine | ||||||
| Bore x stroke (mm) | 86 x 90 | 92 x 90 | 94 x 90 | 92 x 90 | 94 x 90 | 94 x 96 | 97 x96 |
| Displacement(cc) | 522 | 598 | 624 | 598 | 624 | 666 | 709 |
| Compression ratio | 21: 1 | 18: 1 | |||||
| Combustion chamber type | swirl-chamber | Direct Injection | |||||
| Rated output hp(kW) | 8.5(6.25) | 10(7.35) | 11(8.09) | 10(7.35) | 11(8.1) | 11(8.1) | 13(9.55) |
| Max output hp(kW) | 9.5(6.99) | 11(8.09) | 12(8.8) | 11.4(8.4) | 12.5(9.19) | 12.5(9.19) | 14(10.3) |
| Rated speed ( rpm ) | 2400 | ||||||
| Max torque (N. m) | 29.4(3.0) | 34.5(3.5) | 38.2(3.9) | 35(3.6) | 38.8(3.95) | 38.8(3.95) | 38.8(3.95) |
| Speed at max. torque ( rpm ) | 1850 | ||||||
| Fuel consumption g/kWh( g/hph ) | less than 286 ( 210 ) | less than 250 ( 184 ) | |||||
| Fuel tank capacity (L) | 10 | ||||||
| Lubrication method | Pressure combined with splashing | ||||||
| Cooling system | Radiator type | ||||||
| Fuel tank capacity (L) | 10 | ||||||
| Crankcase oil capacity (L) | 2.3 | ||||||
| Cooling water capacity (L) | 2.1 | ||||||
| Starting method | Hand starting or electric starting | ||||||
| Head lamp | 12V 45W/45W | ||||||
| N. W/G. N(kg) | 105/110 | 110/115 | 110/117 | 110/115 | 112/117 | 115/120 | 120/125 |
| Packing dimension(L*W*H) | Carton 830*380*645 (106units/20GP, 210units/40QP) | ||||||
