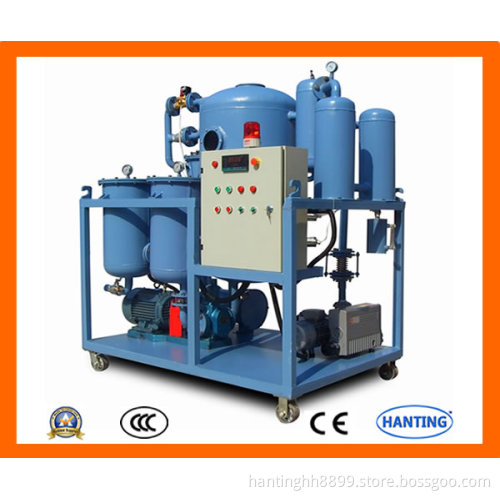

by-100 High Vacuum Oil Purifier for Transformer Oil Filtration

Usage of insulating oil purifier:

To remove moisture, gas and particles in transformer oil, mutual inductor oil, cable oil, and circuit breaker oil, and restore property of insulating oil.

Technical Features of insulating oil purifier:

1. The Oil Purifier can remove moisture, gas and particles in insulating oil to increase the withstand capability and quality of insulating oil, which ensures a safe operation of power equipment; In the meantime the oil purifier supports vacuum oil filling to the transformers.
2. BY oil purifier is small size, high efficiency, easy to move and it can be put in service both indoor and outdoor.
3. The liquid level automatic control device, system automatic pressure protector, high efficient water and gas removing components of the oil purifier are adopted, which are easy and safe to operate.


Advantages of insulating oil purifier:

This oil purifier is highly efficient, cubic evaporation, 3-5 times higher efficiency than ordinary oil purifier. The oil purifier's infrared level control, automatic temperature regulation and interlocking protector enable a man-machine separation. The design of oil purifier is new technology, light weight, compacted, flexible, easy to move and can be used at any environment, being very effective and easy to operate with less power consumption.

tems of oil purifier			Unit	BY-6	BY-10	BY-20	BY-30	BY-50	BY-100	BY-150	BY-200	BY-300
Flow rate			L/min	6	10	20	30	50	100	150	200	300
Vacuum Range			Mpa	-0.06 to -0.095
Working Pressure			Mpa	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4
Temperature Range				20 to 80
Power Supply				380V 50HZ (or at user's option )
Noise			dB(A)	≤65 to 85
Fault-Free Working Hours			h	≥4000
Continuous Running Hours			h	≥150
Heating Power			Kw	9	15	15	15	30	48	60	72	90
Total Power			Kw	9.7	16.5	16.5	16.5	33.5	53	65	76	98
Inlet(Outlet) Diameter			mm	Φ20	Φ25	Φ25	Φ25	Φ32	Φ42	Φ50	Φ50	Φ60
Total  Weight  of Equipment			kg	150	230	250	270	300	500	700	900	1100
Dimension		L	mm	970	1000	1000	1050	1200	1450	1600	1800	1900
		W	mm	630	700	750	750	950	1000	1100	1200	1200
		H	mm	900	1300	1400	1450	1500	1800	1800	1900	1900
Indexes After Filtration	Breakdown Voltage		KV	≥65
	Water Content		ppm	≤5
	Gas Content		%	≤0.1
	Particles		μ	≤5
