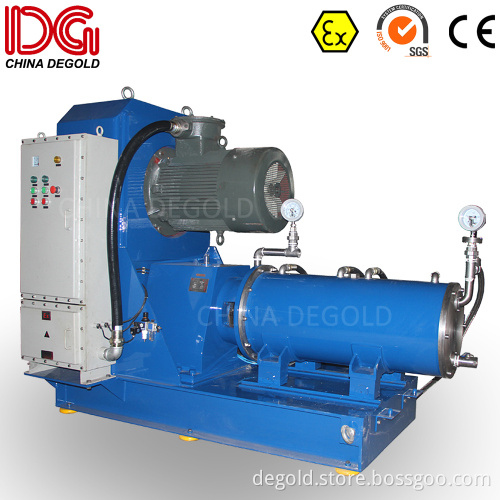

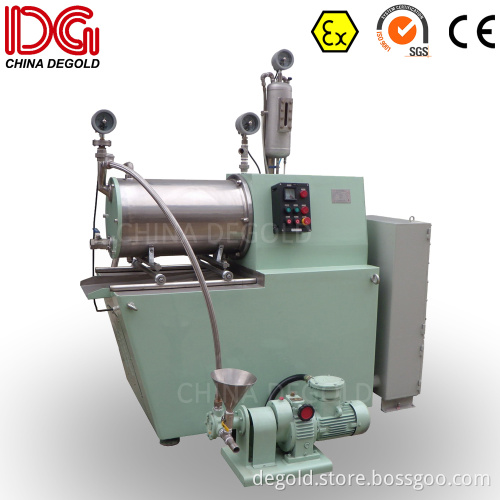

Horizontal Bead Mill Sand Mill Pearl Mill
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing, China. |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size. We produce following five series.
Technical Data
| "Series ZM" horizontal bead mills: | grinding discs type bead mills |
| "Series ZM-X" horizontal bead mills: | |
| "Series ZM-E" horizontal bead mills: | |
| "Series ZM-K" horizontal bead mills: | pin type bead mills |
| "Series ZM-T" horizontal bead mills: | turbo type bead mills |

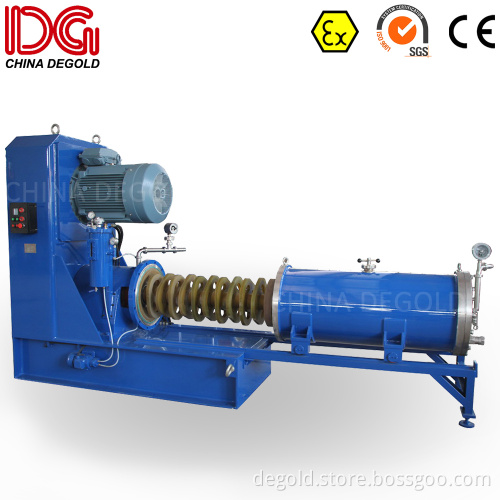

Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.
Different materials inside the horizontal bead mills can be choosen, such as SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic etc.
Application:
Application:
| Agrochemicals | Pesticide, Herbicide, Fertilizer, SC |
| Ceramic Industry | Ceramic inks, Ceramic pigments |
| Printing Inks | Inkjet, Screen printing inks, Flexo printing inks |
| Pigments and Dyes | Pigment, Titanium dioxide |
| Paint and Coating | Construction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear Coat |
| Minerals | Calcium carbonate, Pharmaceuticals, Cosmetics |
Technical Data
ZM Series:
| ZM0.3 | ZM1.4 | ZM5 | ZM15 | ZM20 | ZM30 | ZM50 | ||
| Effective grinding chamber volume (L) | 0.3 | 1.4 | 5 | 15 | 20 | 30 | 50 | |
| Main motor power (kW) | 0.75 | 2.2 | 7.5 | 15 | 18.5 | 22 | 30 | |
| Grinding shaft rotary speed (r/min) | 0~1500 | 0~2800 | 1650 | 1200 | 1200 | 1120 | 900 | |
| Adjustable range of materials flow (L/min) | 0~1 | 0~2 | 0~2 | 0~10 | 0~10 | 0~60 | ||
| Max. cooling water consumption (t/h) | 0.5 | 1 | 1 | 2 | 2 | 2.5 | ||
| Estimated productivity (kg/h) | 2~20 | 12~120 | 30~300 | 40~400 | 50~600 | 100~1000 | ||
| Dimension (mm) | L | 640 | 650 | 1250 | 1560 | 1600 | 1860 | 2100 |
| W | 410 | 570 | 900 | 1050 | 1050 | 1100 | 1150 | |
| H | 485 | 885 | 1250 | 1550 | 1550 | 1550 | 1650 | |
| Net weight (kg) | 50 | 500 | 700 | 800 | 980 | 1100 | 1300 | |
| Note: Technical data are different if there are some customized constructions. | ||||||||
ZM-X Series:
Model |
ZM5-X | ZM15-X | ZM20-X | ZM30-X | ZM50-X | ZM100-X | ZM200-X | |
Effective grinding chamber volume (L) |
5 | 15 | 20 | 30 | 50 | 100 | 200 | |
| Main motor power (kW) | 11 | 18.5 | 22 | 30 | 37/45 | 45/55 | 55/75 | |
| Grinding shaft rotary speed (r/min) | 1650 | 1200 | 1200 | 1120 | 900 | 700 | 550 | |
| Adjustable range of materials flow (L/min) | 0~2 | 0~2 | 0~10 | 0~10 | 0~60 | 0~60 | 0~150 | |
| Max. cooling water consumption (t/h) | 1 | 1 | 2 |
