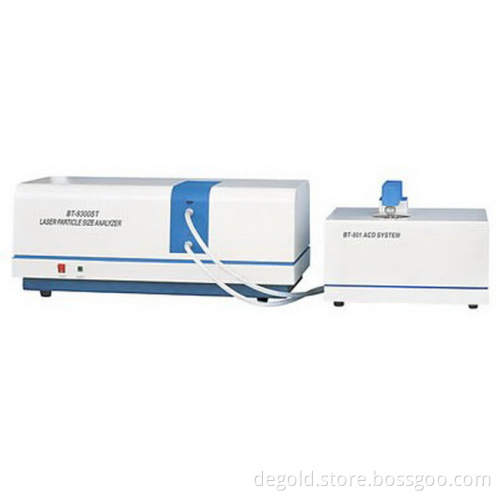

Laser Particle Size Analyzer (BT-9300ST)

Specifications
Small Cell System
1. Size Range: 0.1-716um
2. Sample adding method: Small cell assembly and circulating pump
3. Repeatability: 4. Accuracy: 5. Laser source: Import semi-conductor laser
6. Photocell: 80 PCS
7. Connecting Port: RS232 or USB
8. Testing Time: General 2-3min each time

Outstanding Features
1. Import semi-conductor laser runs for 25000 hours (4 times longer than common He-Ne laser) in wavelength 635nm and power 3mw.
2. Unique 84 photocells are highly sensitive and consistent so as to effectively capture even faintly scattered signal.
3. Two forms of sample feeding by circulation system and small cell assembly expand the applications. Small cell assembly suits costly, heavy metallic samples or samples not workable with water; Circulation system for metallic or non-metallic powders and many fields.
4. Process data by Mie scattering theory, inversion algorithm incorporates R-R, Free1 and Free2 distribution patterns in order to satisfy needs of various industries, fields and customers.
5. Passed calibration enables units to run with better accuracy and correlation.
