New Kingkan 8X4 Dump Truck 310/340/380HP
- Payment Type:
- L/C, T/T, D/P
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing, China |
|---|---|
| Payment Type: | L/C, T/T, D/P |
Product Description
Product Description
Dump Truck, Tipper, Heavy Truck, dumper
NO. TECHNICAL SPECIFICATION
1 Model: CQ3314HTG366 8X4 Dump Truck

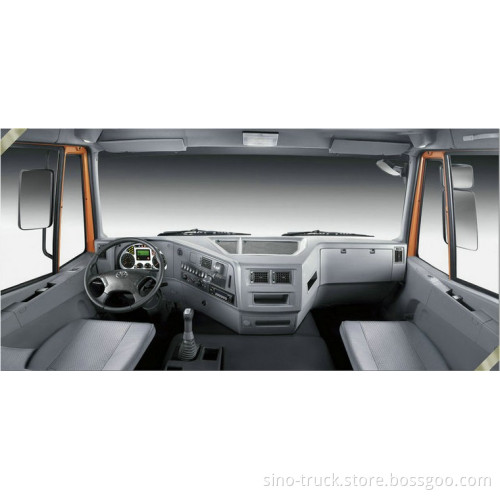

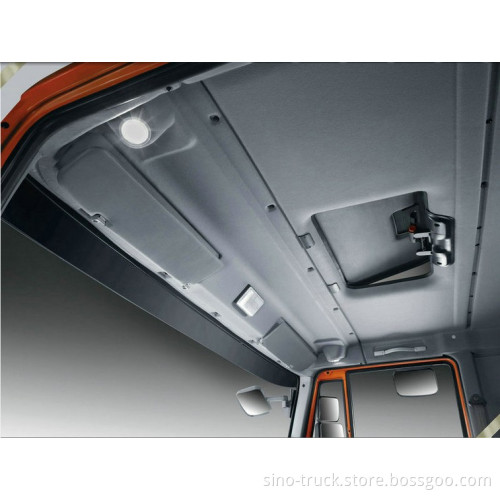

2 Cab: New Kingkan flat-roof cab, Air conditioner, Left-Hand drive
3 Drive: 6X4
4 Total mass(kg): 31000
5 Curb weight(kg): 15070
6 Rated Payload(kg): 15800
7 Max Speed(km/h): 80
8 Max gradeability(%): 32
9 Overall Dimension(mm): 10285X2500X3510
10 Skip Dimension(mm): 7400X2300X 1100 (18.7CBM)
11 Wheelbase(mm): 1800+3600+1350
12 Engine: Wp10.336 Euro III Emission Standard
13 Engine Output: 247KW (336HP)
14 Transmission: 12JSD180T
15 Number of steel plate spring (front/rear): Left14 right13/left14 right13/12
16 Frame: Outside width 865mm, longeron cross section 317X(8+8)mm
17 Tyre: 12.00R20
18 Oil Tank(L): 340L Aluminum-Magnesium Alloy

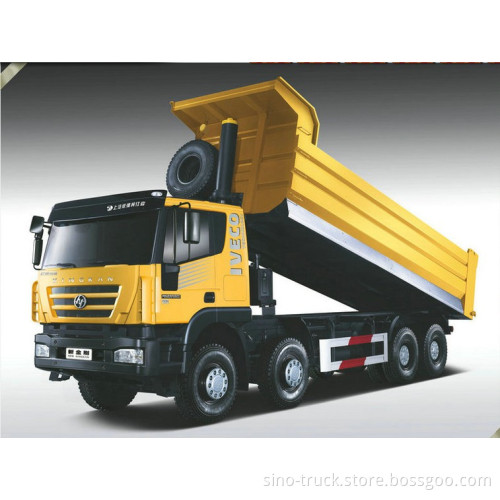

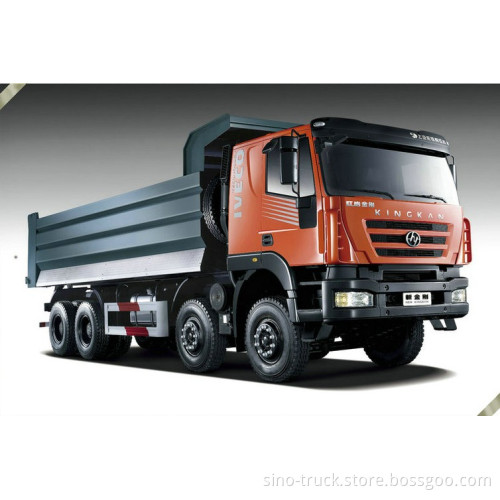

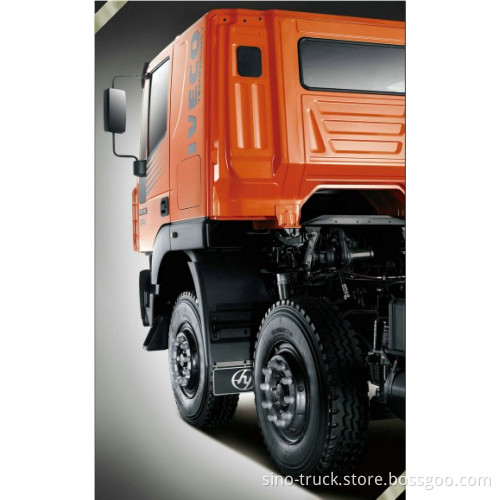

![New Kingkan 8X4 Dump Truck 310/340/380HP]()
![New Kingkan 8X4 Dump Truck 310/340/380HP]()
![New Kingkan 8X4 Dump Truck 310/340/380HP]()
NO. TECHNICAL SPECIFICATION
1 Model: CQ3314HTG366 8X4 Dump Truck
2 Cab: New Kingkan flat-roof cab, Air conditioner, Left-Hand drive
3 Drive: 6X4
4 Total mass(kg): 31000
5 Curb weight(kg): 15070
6 Rated Payload(kg): 15800
7 Max Speed(km/h): 80
8 Max gradeability(%): 32
9 Overall Dimension(mm): 10285X2500X3510
10 Skip Dimension(mm): 7400X2300X 1100 (18.7CBM)
11 Wheelbase(mm): 1800+3600+1350
12 Engine: Wp10.336 Euro III Emission Standard
13 Engine Output: 247KW (336HP)
14 Transmission: 12JSD180T
15 Number of steel plate spring (front/rear): Left14 right13/left14 right13/12
16 Frame: Outside width 865mm, longeron cross section 317X(8+8)mm
17 Tyre: 12.00R20
18 Oil Tank(L): 340L Aluminum-Magnesium Alloy
