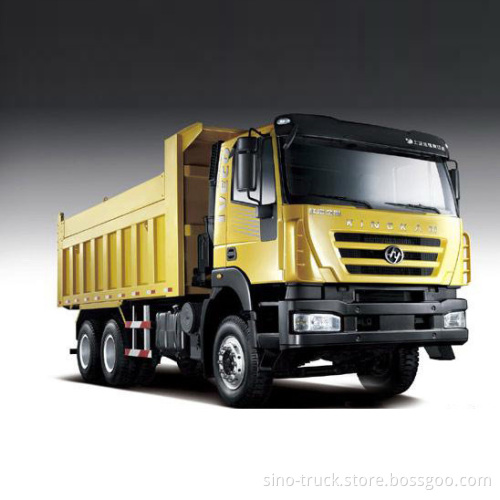

New Iveco Kingkan 6X4 Dump Truck

Get Latest Price

Payment Type:: L/C, T/T, D/P

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China
Payment Type:	L/C, T/T, D/P

Product Description

TECHNICAL SPECIFICATION

1 Model: CQ3254HMG384 6X4 Dump Truck

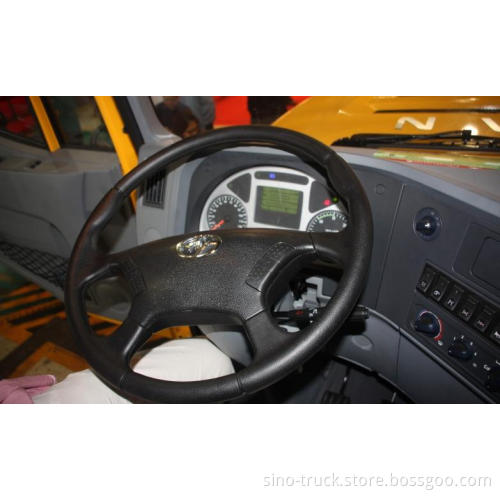

2 Cab: New Kingkan flat-roof cab, Air conditioner, Left-Hand drive
3 Drive: 6× 4
4 Total mass(kg): 25000
5 Curb weight(kg): 12090
6 Rated Payload(kg): 12780
7 Max Speed(km/h): 80
8 Max gradeability(%): 32
9 Overall Dimension(mm): 8275X 2500X3510
10 Skip Dimension(mm): 5400X2300X1200 (15CBM)
11 Wheelbase(mm): 3825+1350
12 Engine: Wp10.310E32 Euro III Emission Standard
13 Engine Output: 228KW (310HP)
14 Transmission: 10JSD140

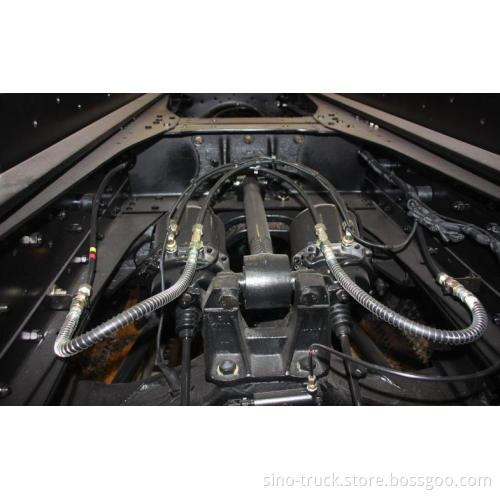

15 Number of steel plate spring (front/rear): 9/12
16 Frame: Outside width 865mm, longeron cross section 317x(8+8)mm
17 Tyre: 12.00R20
18 Oil Tank(L): 340L Aluminum-Magnesium Alloy.
