Product Description

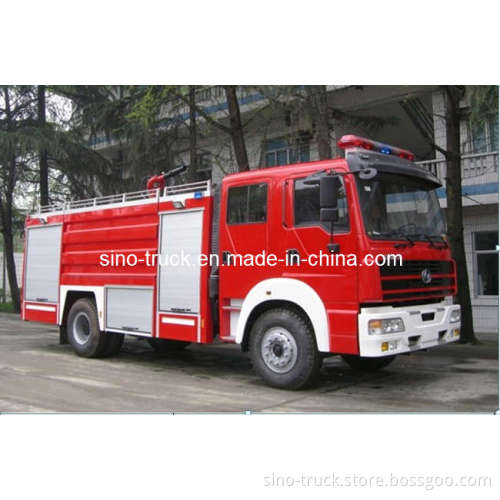

1. Hongyan water tank fire fighting truck
2. Adopt second-class truck chassis
3. It's an ideal equipment of fire fighting
Hongyan water tank fire fighting truck Technical Parameters
Product Hongyan water tank fire fighting truck Overall dimension 8440× 2500× 3400 (mm)
Chassis model CQ1163TLG461 Compartment dimension × × (mm)
Gross weight 15800 (kg) Approach angle/Departure angle 19/14 (° )
Rated payload 5500 (kg) Front/rear suspension 1576/2210 (mm)
Kerb weight 9850 (kg) Max speed 85 (km/h)
Engine WD615.56 6C260-2 WD615.56
Displacement 9726 8268 9726 (ml) Power 193 192 193 (kw)
Manufacturer Weichai Power Co., Ltd. / Shanghai Diesel Engine Co., Ltd. / Hangzhou Vehicle Engine Co., Ltd.
Emission standard GB3847-2005, GB17691-2001 Euro 2
Axle nos 2 Front tread 2006 (mm)
Wheelbase 4600 (mm) Rear tread 1800 (mm)
Tyre nos 6 Tyre specification 12.00-20, 11.00-20
Fuel type Diesel Leaf spring nos 8/10+6
Axle load Passenger nos 3
Remarks Tank size: 2.155× 2.40× 1.25m
