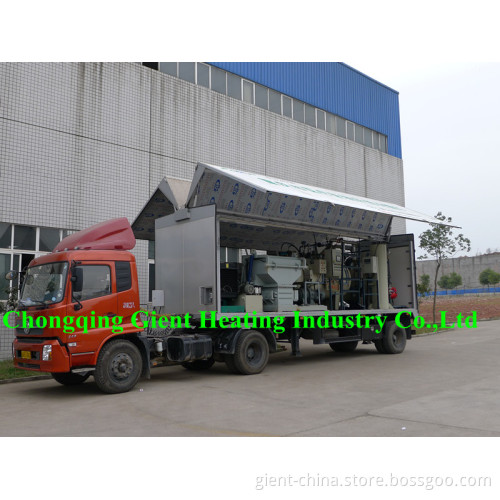

on-Site Treatment of Medical Waste Truck
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Product Description
Medical Wate Autoclave system of Stationary Type MWM80
*Application: Applied to in-time and on-site treatment of medical waste in large and medium hospitals and scattered medical waste in rural areas. All equipments are integrated on one steel boar so the installation is quite easy.
1. Operating Principle
Medical waste are put into autoclave vessel under saturated steam with temperature 134° C(273° F) and pressure 0.22Mpa(32psi) in 45 min to get fully sterilized; Then the sterilized waste sent to shredder to crush into short pieces. The final treated medical with volume reduction of 80% and weight reduction of 20% can achieve the microbial inactivation LOGO4 (99.99%) and finally become ordinary city refuse for safe landfill.
2. Complete equipment system consists of autoclave system, steam boiler system, shredder system, clean and disinfection system etc.
*Gient provide customized design, autoclave capacity and size can be adjusted as requested. Picture above is only for reference and subject to final.
3. Advantages:
1)World Leading Technology in Pollution Control:
Thermal deodorant technology can reduce obnoxious gas emission more than 90%, through effluent disposal technology, waste gas and effluent can meet emission standard and discharge directly. Operator no touch with medical waste during both operating process and maintenance.
2) World Leading & Patented Technology in Practical and Durable Design:
Major equipment with long-life & Pressure-proof design: Pecial sherardizing
Steel material+high-tech protective coating + rigorous treatment process, which
Can effectively solve the inwall aseptic problem to complex environment, such as
High temperature, high pressure, high humidity, alternating positive and negative
Pressure and chloride ions corrosion etc, the normal life of the autoclave is above
15 years.
3) Safe and Easy to Operate:
100% automated system and only one operator can manage all handling
Process. Safety system is protected by hydraulic, mechanical and electricity
Systems at the same time.
4) Energy Efficiency
Lowest level of energy consumption in the world, efficient energy-saving
Operation, minimized power consumption.
4. Basic Technical Parameter:
MODEL: MWM80
Capacity: 80KG/cycle
Autoclave Loading: Horizontal
Single Door: Quick Opening Door/ Safety Pin Interlock/Locking Ring
Thermal Source: Saturated Steam
Vacuum Pressure: -0.09Mpa (13psi)
Pre-vacuum Time: 1 min
Post-vacuum Time (cooling down time): 3 min
Sterilization Pressure: 0.22Mpa (32psi)
Sterilization Temperature: 134° C (273° F)
Treatment Cycle: 60 min
Microbial Inactivation: 99.99 %(LOGO4)
Gient is the largest manufacturer for steam autoclave system of medical waste treatment in China, we provide the best solution of medical waste management for our customer since 1995.
*Application: Applied to in-time and on-site treatment of medical waste in large and medium hospitals and scattered medical waste in rural areas. All equipments are integrated on one steel boar so the installation is quite easy.
1. Operating Principle
Medical waste are put into autoclave vessel under saturated steam with temperature 134° C(273° F) and pressure 0.22Mpa(32psi) in 45 min to get fully sterilized; Then the sterilized waste sent to shredder to crush into short pieces. The final treated medical with volume reduction of 80% and weight reduction of 20% can achieve the microbial inactivation LOGO4 (99.99%) and finally become ordinary city refuse for safe landfill.
2. Complete equipment system consists of autoclave system, steam boiler system, shredder system, clean and disinfection system etc.
*Gient provide customized design, autoclave capacity and size can be adjusted as requested. Picture above is only for reference and subject to final.
3. Advantages:
1)World Leading Technology in Pollution Control:
Thermal deodorant technology can reduce obnoxious gas emission more than 90%, through effluent disposal technology, waste gas and effluent can meet emission standard and discharge directly. Operator no touch with medical waste during both operating process and maintenance.
2) World Leading & Patented Technology in Practical and Durable Design:
Major equipment with long-life & Pressure-proof design: Pecial sherardizing
Steel material+high-tech protective coating + rigorous treatment process, which
Can effectively solve the inwall aseptic problem to complex environment, such as
High temperature, high pressure, high humidity, alternating positive and negative
Pressure and chloride ions corrosion etc, the normal life of the autoclave is above
15 years.
3) Safe and Easy to Operate:
100% automated system and only one operator can manage all handling
Process. Safety system is protected by hydraulic, mechanical and electricity
Systems at the same time.
4) Energy Efficiency
Lowest level of energy consumption in the world, efficient energy-saving
Operation, minimized power consumption.
4. Basic Technical Parameter:
MODEL: MWM80
Capacity: 80KG/cycle
Autoclave Loading: Horizontal
Single Door: Quick Opening Door/ Safety Pin Interlock/Locking Ring
Thermal Source: Saturated Steam
Vacuum Pressure: -0.09Mpa (13psi)
Pre-vacuum Time: 1 min
Post-vacuum Time (cooling down time): 3 min
Sterilization Pressure: 0.22Mpa (32psi)
Sterilization Temperature: 134° C (273° F)
Treatment Cycle: 60 min
Microbial Inactivation: 99.99 %(LOGO4)
Gient is the largest manufacturer for steam autoclave system of medical waste treatment in China, we provide the best solution of medical waste management for our customer since 1995.
