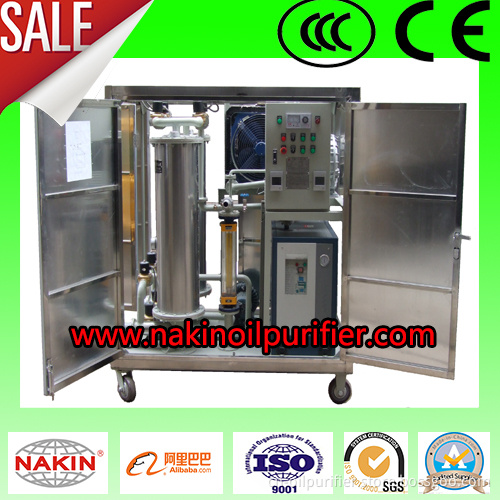

Aaaaa-Ad-20 Series Ad Air Dryer Device

Application:
AD series air dryer device is used for drying the electric equipments and providing the dry air. These machines are on operation and maintenance, or some electrical equipments such as transformer and reactor, are quite easy to be moistened; So, AD air dryer supplies dry air to solve this problem. AD is not influenced by bad weather conditions, especially for overnight working, just to fill 0.02-0.03MPa dry air into equipment after sealing all flanges. Electric equipments Oil filling and oil drainage is unnecessary, which can shorten working period and improve maintenance effect. During oil filtration, it can fill dry air into oil equipment block and oil to improve oil insulation and decrease the moisture. At the same time, anoxia asphyxia will never happen to maintenance people. It's more safe, reliable, convenient and economical than by using bottled gas.

Series AD air dryer adopts low pressure oil-less compressed system and low-temperature condensation moisture removal technology, with the merits of small dimension, light weight, easy operation, energy saving and high reliability.

If you have some special requirements, we can make the machine according to your idea.
And all the machines are with high quality.

The air pressure can achieve 0.02-0.04Mpa, and we can order the motor according to your power supply requirements.


If you are interested in our oil purifier machines, please do not hesitate to contact us.
Contact: Annabelle
Our products list as following:
ZYD vacuum transformer oil purifier
ZY vacuum transformer/insulating oil purifier
ZYM Mobile Trailer type transformer oil purifier
IIJ-II Insulating/transformer oil dielectric strength tester
TYA Lubricant/hydraulic/turbine oil purifier
JZS Waste engine oil regeneration system
TJ Coalescence and separating oil purifier
TYK Phosphate ester fire-resistant oil purifier
PF Plate pressure oil purifier, Portable oil purifier
NKEE-36 Oil moisture sensor
AD Air dryer for drying electric equipments
TPM Oil water separator
