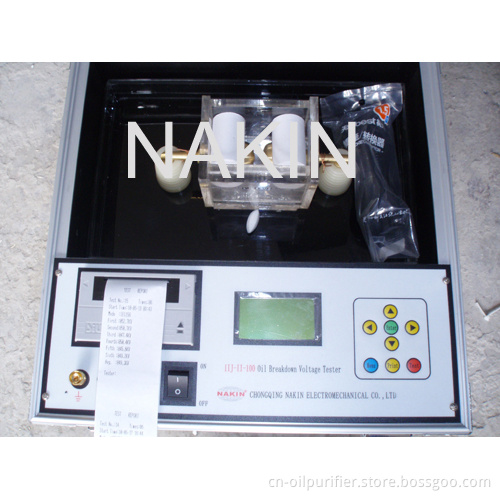

Bdv Oil Tester (1.2kVA(1.6kVA, 2.0kVA)

Application:
In the electric power industry, insulating oil is wildly applied in electric equipments. The dielectric strength is a comprehensive index for insulating oil. Series IIJ-II oil tester is special for testing insulating oil's dielectric strength. IIJ-II Automatic oil tester is designed according to international standard of IEC156. Adopt industrial single chip as controller, apply large integrate circuit, new type I/O interface, LCD displayer, combined with special testing and anti-jamming technologies which greatly improve the tester's performance.

Technical Parameters:
1. Power supply: AC220V± 10%, 50Hz
2. Output voltage: 0~80KV(60KV, 80KV)
3. Capacity: 1.2KVA(1.6KVA, 2.0KVA)
4. Speed of pressure rise: About 2KV/S
5. Voltage test precision: ± 3%
6. Breakdown sensitivity: <2KV
7. Wave difference: ≤ 3%
8. Time of breakdown: ≤ 10ms
9. Working
Temperature: 0C~40C humidity: The biggest comparatively humidity85%
10. Reserve circumstance
Temperature: -20C~60C humidity: The biggest comparatively humidity75%
Working altitude: <1500m (if over 1500m can be designed specially)
11. Dimension: 480mm*460mm*460mm

If you are interested in our oil purifier machines, please do not hesitate to contact us.
