Fry Food Factory Edible Oil Regenerating Machine (1800L/H)

TPF Cooking oil filtration plant

 TPF Cooking oil filtration plant is special for filtering waste cooking oil; it removes impurity, odor, water, acid and alcohol etc. from oil completely and effectively. Treated cooking oil color is limpid, oil is good smell. This filtration plant is suitable for food factory, cooking oil factory, vegetable oil factory, it can help factory reclaim remnants oil. Also, TPF is a good filtration part for bio-diesel oil making.

Machine Advatage:

1. This plant composed by two parts, one is the press filter, and other one is the vacuum oil purifier system. The press filter can remove the big and tiny impurity; the precision of purification can reach to 1 Micro. The Vacuum system equips three grades filter (primary filter, mass water separator, and fine filer). All process works under the vacuum condition.

2. For the primary filter, which is made of the stainlessness steel, it is anti-rust and anti-corrupt, it mainly removes the residual impurity which escape from the press filter

3. The water separator, which equips the special filter, which mainly remove the mass water from the oil, because usually the waste cooking oil always contains much water, so we need remove the mass from oil ,not any impurity when it goes into the water separator and vacuum separator. After the water separator, the oil just contains the tiny water and soluble water.

4. After the process of the water separator, the oil will goes into the vacuum separator, which adopts three-dimensional duplex evaporation and film evaporation. For protecting the oil nature, it is better that the oil temperature is lower than 80 C, Because our machine works under the vacuum and low pressure conditions, so it don't need heat the oil to 100 C, usually it just need heat the oil to 45 C, Then it can remove the tiny water, soluble water, acid, alcohol and other volatility liquid completely and effectively.

5. The fine filer, which is equips the stainlessness steel filter, the purification hole is less then 1 Micro, which can make sure the oil is completely clear, no any impurity.

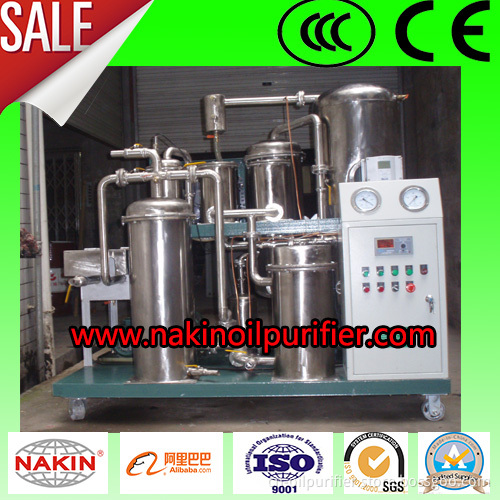

TPF PHOTOS SHOW----------- Different material

1,Stainless stell

2,Carbon stell

Other main products
Series BZ Insulating Oil Recycling Machine
Series TYA Lubricating Transformer Oil Purifier
Series TY Turbine Transformer Oil Filtration Machine
Series JZS/JZC Engine Oil Recycling Machine
Series TPF Edible Oil Reclamation Machine
Series TYK Phosphate Ester Fire-resistant Transformer Oil Filter
Series IIJ-II Insulating Oil Dielectric Strength Tester
Series NKEE Oil Moisture Content Sensor

user's options:
1.Trailer type with fully closed for protecting oil purifier machine(Waterproof and dustproof)
2.Choosing different kinds vacuum pump, oil pump, and electric parts.
3.Anti-explosion (EX type) electric parts.
4.Equips moisture sensor and dielectric strength tester on the machine.
5.Filter elements for different requirements on filtering precision
6.Stainless steel material for oil purifier body.
Contact us ,we will recommend the most suitable oil purifier to you.
