Mobile Vacuum Insulating Oil-Transformer Oil Purifier/Purification Device (ZYM)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China
Payment Type:	L/C, T/T

Product Description

Application:
Series ZYM mobile insulating oil purifier, this machine is mainly used for dealing with unqualified transformer oil, switch oil, mutual inductor oil, ZYM belong to Double-stage transformer oil purifier can effectively remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYM oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYM oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. The best advantage of ZYM is that can move long distance working in field.

Features:

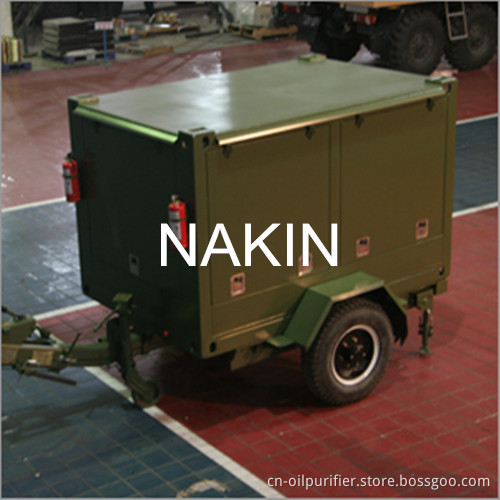

1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.
2. Installation of car tyres, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

Advantages:
Mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distance working in field.

Technical Parameters:

Index name	Unit	ZYM-30	ZYM-50	ZYM-65	ZYM-100	ZYM-150
Flow rate	L/H	1800	3000	4000	6000	9000
Working vacuum	MPa	-0.08~-0.099
Working pressure	MPa	≤0.4
Temperature range	ºC	20 -80
Dielectric strength	KV	≥ 70
Water content	ppm	≤ 3
Gas content	%	≤0.1
Particles size	μ	≤1
Power supply		380V 50HZ 3Ph (As per user's option)
Working noise	dB(A)	≤65~85
Heating power	Kw	24	30	40	60	90
Total power	Kw	27.5	35.5	48.5	66	105

NAKIN Company products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages insulating oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type transformer oil treatment, oil filtration machine
AD-Air dryer for drying electric equipments
TY-Turbine oil purifier, oil treatment
TJ-Coalescence and separating oil filter, oil purifier machine
TYA-Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
JYWL-Horizontal-closed type filtration device
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure oil filter, oil purifier machine
JL-Portable oil purifier, oil filtering, oil filter
NKVW-Vacuum pump system
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor
