Distribution Transformer Oil Purification System (ZY)

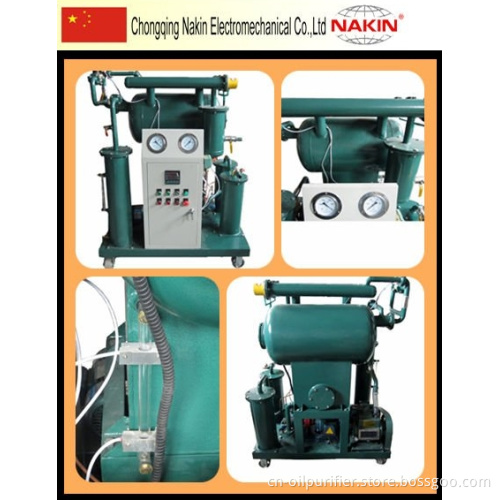

Series ZY distribution transformer oil purification system

Application:

Series ZY distribution transformer oil purification system, designed for the power station, industrial and mining enterprises purifying the unqualified transformer oil, insulating oil, mutual inductor oil, switch oil and so on. ZY equipped with one-stage vacuum system. ZY distribution transformer oil purification system can remove water; Trace water, gas, particles from oil quickly and effectively, special for improving oil dielectric strength. Also, ZYdistribution transformer oil purification system can be used for power equipments to vacuum drying, and vacuum oiling.

Distribution transformer oil purification system Main features:
1. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
2. Multi-stage precision filtration system, mesh filtration combined with molecule adsorption technologies
3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Working with BZ insulating oil regeneration device to discolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.

 The ZY distribution transformer oil purification system has single vacuum system, and the temperature is between 20 C and 80C, in this way, the final treated oil in high quality.

Distribution transformer oil purification system, is a kind of equipment for filtering solid impurity, water from oil, and improve the performance of transformer oil, insulating oil's insulation intensity.
Distribution transformer oil purification system Working theory:
When the oil purifier working, then oil enters into the machine with the help of the domestic and foreign oil different pressure, and oil flow into primary filter, the large impurities will be filtered. The multilevel infrared ray heating system will heat the oil, and the oil flow into the special personalized vacuum separator, first, the oil is mist, then becomes into membrane, so the vacuum of contact area expanded hundreds times, the water, gas will be removed out through vacuum system under the high fever, high vacuum degree, large surface, high pumping speed conditions.

user's options:
1.Trailer type with fully closed for protecting oil purifier machine(Waterproof and dustproof)
2.Choosing different kinds vacuum pump, oil pump, and electric parts.
3.Anti-explosion (EX type) electric parts.
4.Equips moisture sensor and dielectric strength tester on the machine.
5.Filter elements for different requirements on filtering precision
6.Stainless steel material for oil purifier body.



Our Products List :



ZYD vacuum transformer oil purifier
ZY vacuum transformer/insulating oil purifier
ZYM Mobile Trailer type transformer oil purifier
IIJ-II Insulating/transformer oil dielectric strength tester
TYA Lubricant/hydraulic/turbine oil purifier
JZS Waste engine oil regeneration system
TJ Coalescence and separating oil purifier
TYK Phosphate ester fire-resistant oil purifier
PF Plate pressure oil purifier, Portable oil purifier
NKEE-36 Oil moisture sensor
AD Air dryer for drying electric equipments
TPM Oil water separator



Contact us ,we will recommend the most suitable oil purifier to you.

CHONGQING NAKIN ELECTROMECHANICAL CO., LTD.

is dedicated to provide you the best solution for all kinds of industrial oil regeneration.

 If you are interested in our oil purifier machines, please do not hesitate to contact us.
