Plate Press Engine Oil Filtration Machine (PF)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China
Payment Type:	L/C, T/T

Product Description

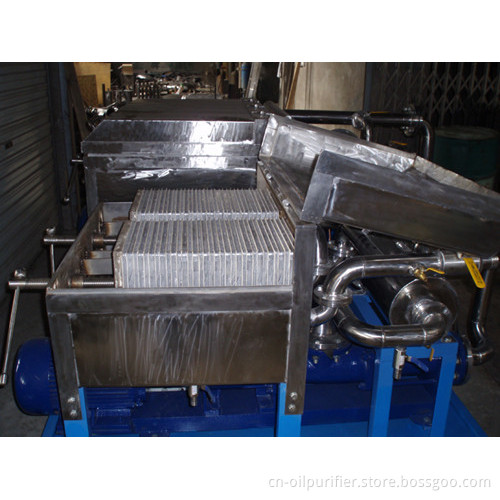

Series PF Plate-Press oil purifier

Application:

Series PF Plate-press oil purifier is mainly used to purify transformer oil, turbine oil, engine oil, diesel oil, aviation hydraulic oil etc. It can remove water and particles from oil, if adopting stainless steel body, the machine can be as the vegetable oil purifier. The machine is mainly composed of filtering bed, oil pump and primary-filtering components. It uses filter paper as filter medium, different filtration precisions choosing different filter paper. Series PF is high filtration precision, simple structure, easy operation, low operation cost.

Stainless Steel

Nakin Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries.

NAKIN Company products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages insulating oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type transformer oil treatment, oil filtration machine
AD-Air dryer for drying electric equipments
TY-Turbine oil purifier, oil treatment
TJ-Coalescence and separating oil filter, oil purifier machine
TYA-Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
JZC-Waste black oil distillation plant
JYWL-Horizontal-closed type filtration device
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure oil filter, oil purifier machine
JL-Portable oil purifier, oil filtering, oil filter
NKVW-Vacuum pump system
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor

Index name	Unit	PF30	PF50	PF100	PF125	PF150	PF200	PF300
Flow rate	L/H	1800	3000	6000	7500	9000	12000	18000
Working pressure	MPa	0-0.3
Filtering size	>m 2	0.48	0.6	1.35	1.55	2	2.5	3.1
Plate dimension	mm	180×180				280×280
Pressing way		Manual
Filter ring quantity		14	18	39	47	24	29	34
Filter plate quantity		15	19	40	48	25	30	35
Power	KW	1.1		2.2		3		5.5
Inlet calibre		1		1 1/4				2 1/2
Outlet calibre		3/4		1 1/4				2 1/2
Particles size	< 1-3 µm
