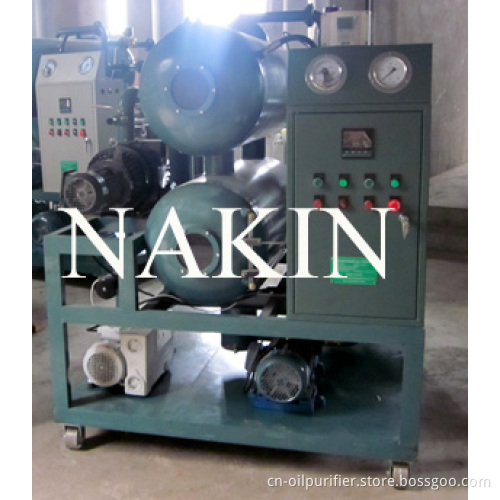

Transformer Oil Drying Machine (ZY)

ZY transformer oil purifier / oil dry machine is single-stage vacuum oil purification machine, it can dewater, degase and removes the impurities more quickly and completely. After purifying by this insulating oil purfier, the oil breakdown voltage will be improved greatly. As the bridge-type vacuum linking system, ZY insulating oil purifier also can be used for filtrating system as well as an independent vacuum power supply to vacuum oiling of power equipment.

Features:
1. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
2. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
5. Working with BZ insulating oil regeneration device to decolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.
6. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
