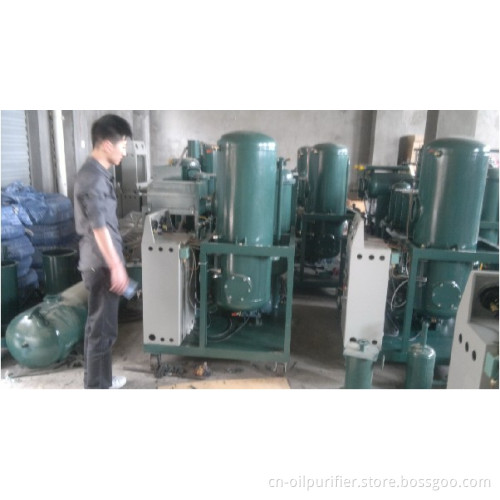

Turbine Oil Purification Device with Vacuum System (TY)

Application:
TY series Turbine oil purification device with vacuum system is mainly used for purifying unqualified turbine oil, especially for serious emulsion turbine oil. TY Turbine oil purification device with vacuum system can break emulsification, separate water, gas, particles from waste oil quickly and efficiently. The treated oil absolutely can achieve new oil's standard.
In order to ensure whole turbine system work safely, this equipment use a special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles; Then the badly turbid turbine oil becomes clear transparent.

Series TY Turbine oil purification device with vacuum system is a perfect turbine oil purifier for live line work; It also can purify low viscosity hydraulic oil and lube oil.

Outstanding Features:

1. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.
2. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
3. Double-infrared liquid level sensor, pressure protective system to ensure the operation easily and safely.
4. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, it can separate water, gas from waste oil rapidly and effectively.
5. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6 Work online with stream turbine, hydraulic turbine.
7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

We can make the machine according to your capacity.
TY machine working vacuum is -0.06~-0.095Mpa,
Working pressure is ≤ 0.4Mpa
Cleanness is less than NAS 6 grade.
