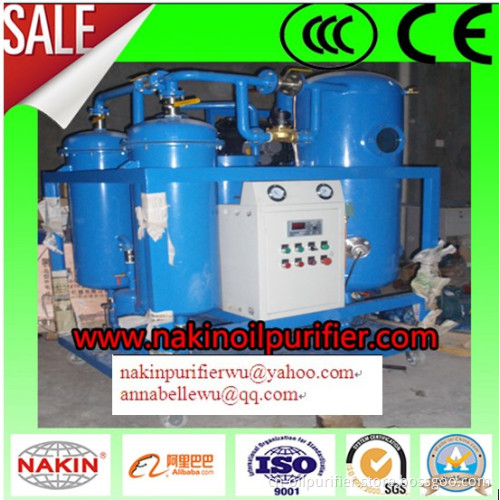

AAA-Ty (6000HL/H) Emulsion Turbine Oil Reclamation Equipment

                    Series TY vacuum turbine oil purifier


Application:
Series TY vacuum turbine oil purifier mainly be used for purifying unqualified turbine oil, especially for serious emulsion turbine oil, it can quickly and efficiently break emulsification, separate water, gas, particles from oil. So that makes sure quality of treated oil to achieve new oil's standard, ensure whole turbine system work safely. This equipment use a special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clear transparent. Series TY is a perfect turbine oil purifier for live line work; Also it can purify low viscosity hydraulic oil and lube oil.

Features:
1. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
2. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.
4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
6. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
7. Work online with stream turbine, hydraulic turbine.

OIL PURIFIER PACKING, LOADING AND DELIVERY







Our Products List :

ZYD vacuum transformer oil purifier
ZY vacuum transformer/insulating oil purifier
ZYM Mobile Trailer type transformer oil purifier
IIJ-II Insulating/transformer oil dielectric strength tester
TYA Lubricant/hydraulic/turbine oil purifier
JZS Waste engine oil regeneration system
TJ Coalescence and separating oil purifier
TYK Phosphate ester fire-resistant oil purifier
PF Plate pressure oil purifier, Portable oil purifier
NKEE-36 Oil moisture sensor
AD Air dryer for drying electric equipments
TPM Oil water separator

Contact us ,we will recommend the most suitable oil purifier to you.
CHONGQING NAKIN ELECTROMECHANICAL CO., LTD.
is dedicated to provide you the best solution for all kinds of industrial oil regeneration.

Index Name		Unit	TY-10	TY-20	TY-30	TY-50	TY-100	TY-150	TY-200	TY-300
Flow rate		L/H	600	1200	1800	3000	6000	9000	12000	18000
Working vacuum		MPa	-0.06~-0.095
Working pressure		MPa	≤ 0.4
Temperature range		C	20 ~80
Demulsifying value		min	≤ 15/min(GB/F7035)
Water content		ppm	≤ 80
Gas content		%	≤ 0.1
Cleanness			≤ NAS 6 grade
Power supply			380V 50HZ 3Ph (As per user's option)
Working noise		dB(A)	≤65~80
Heating power		Kw	12	15	18	24	45	60	72	84
Total power		Kw	14	17	20	27	48	66	81	97
Inlet(Outlet)		mm	Φ25	Φ25	Φ25	Φ32	Φ42	Φ50	Φ50	Φ60
Weight		kg	400	450	500	600	800	1000	1100	1550
Dimension	L	mm	1280	1350	1350	1350	1500	1500	1600	1650
	W	mm	750	900	950	1000	1000	1200	1350	1350
	H	mm	1450	1450	1500	1800	1800	1800	1800	1850
