Two Vacuum Separating Chambers High-Grade Transformer Oil Filtration Machine ((ZYD trailer type)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China
Payment Type:	L/C, T/T

Product Description

Application:

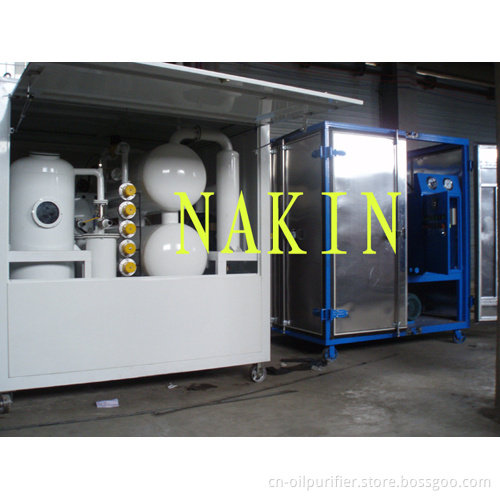

Series ZYD Double-stage transformer oil purifier can quickly remove water,trace water,gas,particles as well as acetylene,hydrogen,methane and other harmful ingredients from oil.Series ZYD effectively improve oil's dialectric strength,
effectively to make sure electric equipments working safely and normally.Series ZYD oil purifier is particularly suitable for treating high-grade transformer oil,supper-voltage transformer oil and new transformer oil.It can be used for more than 110V substation live line work onsite.Meanwhile,Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Advantages:
Series ZYD oil purifier can increase the working effectiveness more than tree times, more quickly and completely dewater, degas, remove particles to get higher dielectric strength. This equipment can be used as independent vacuum source with the functions of vacuum drying and vacuum oiling for the electric plants.

Technical Parameters:

Index name	unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow rate	L/H	1800	3000	6000	9000	12000	15000	18000
Working vaccum	MPa	-0.08- -0.099
Working pressure	MPa	≤ 0.4
Temperature range	C	20 - 80
Dielectric strength	KV	≥70
Water content	ppm	≤3
Gas content	%	≤0.1
Particles size	μ	≤ 1
Power supply		380V 50HZ 3Ph (As per user' s option)
Working noise	dB(A)	≤ 65-85
Heating power	Kw	24	30	60	90	125	136	151
Total power	Kw	27	35.5	68	105	135	148	168

Nakin Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries.

NAKIN Company products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages insulating oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type transformer oil treatment, oil filtration machine
AD-Air dryer for drying electric equipments
TY-Turbine oil purifier, oil treatment
TJ-Coalescence and separating oil filter, oil purifier machine
TYA-Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
JYWL-Horizontal-closed type filtration device
TPF-Waste cooking oil recycling machine
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure oil filter, oil purifier machine
JL-Portable oil purifier, oil filtering, oil filter
NKVW-Vacuum pump system
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor
