Zym-50 (3000L/H) Industrial Univolt Refinery, Oil Purifier Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China
Payment Type:	L/C, T/T

Product Description

Industrial Univolt Refinery, Oil Purifier Machine

Application:
According to user's requirements, we developed Series ZYM mobile insulating oil purifier, this machine is mainly used for dealing with unqualified transformer oil, switch oil, mutual inductor oil, ZYM belong to Double-stage transformer oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYM oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYM oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. The best advantage of ZYM is that can move long distance working in field.

Features:
1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.
2. Installation of car tyres, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

Advantages:

Mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distance working in field.

Index name		Unit	ZYM-30	ZYM-50	ZYM-65	ZYM-100	ZYM-150
Flow rate		L/H	1800	3000	4000	6000	9000
Working vacuum		MPa	-0.08~-0.099
Working pressure		MPa	≤ 0.4
Temperature range		°	20 ~80
Dielectric strength		KV	≥ 70
Water content		ppm	≤ 3
Gas content		%	≤ 0.1
Particles size		μ	≤ 1
Power supply			380V 50HZ 3Ph (As per user's option)
Working noise		dB(A)	≤65~85
Heating power		Kw	24	30	40	60	90
Total power		Kw	27.5	35.5	48.5	68	105
Inlet(Outlet)		mm	Φ25	Φ25	Φ42	Φ50	Φ50
Purifier weight		kg	550	720	830	950	1120
Trailer weight		kg	300	300	450	450	500
Purifier Dimension	L	mm	1400	1400	1650	1700	1820
	W	mm	1100	1100	1200	1200	1320
	H	mm	1300	1300	1500	1500	1620
Trailer Dimension	L	mm	2750	2750	3000	3080	3400
	W	mm	1400	1400	1620	1620	1710
	H	mm	1100	1100	1100	1100	1100

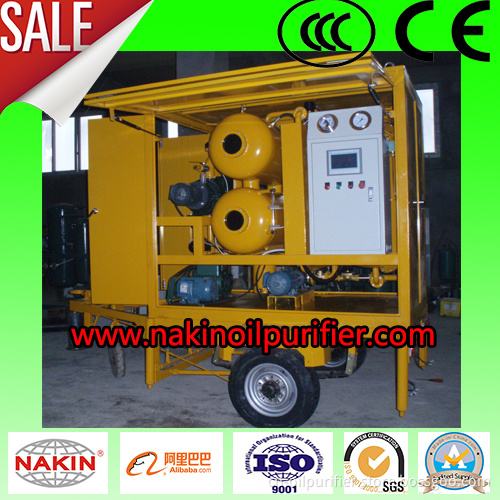

ZYM PHOTOS SHOW
Zym-50 (3000L/H) Industrial Univolt Refinery, Oil Purifier Machine

Other main products
Series BZ Insulating Oil Recycling Machine
Series TYA Lubricating Transformer Oil Purifier
Series TY Turbine Transformer Oil Filtration Machine
Series JZS/JZC Engine Oil Recycling Machine
Series TPF Edible Oil Reclamation Machine
Series TYK Phosphate Ester Fire-resistant Transformer Oil Filter
Series IIJ-II Insulating Oil Dielectric Strength Tester
Series NKEE Oil Moisture Content Sensor

user's options:
1.Trailer type with fully closed for protecting oil purifier machine(Waterproof and dustproof)
2.Choosing different kinds vacuum pump, oil pump, and electric parts.
3.Anti-explosion (EX type) electric parts.
4.Equips moisture sensor and dielectric strength tester on the machine.
5.Filter elements for different requirements on filtering precision
6.Stainless steel material for oil purifier body.

Contact us ,we will recommend the most suitable oil purifier to you.
CHONGQING NAKIN ELECTROMECHANICAL CO., LTD.
is dedicated to provide you the best solution for all kinds of industrial oil regeneration.
