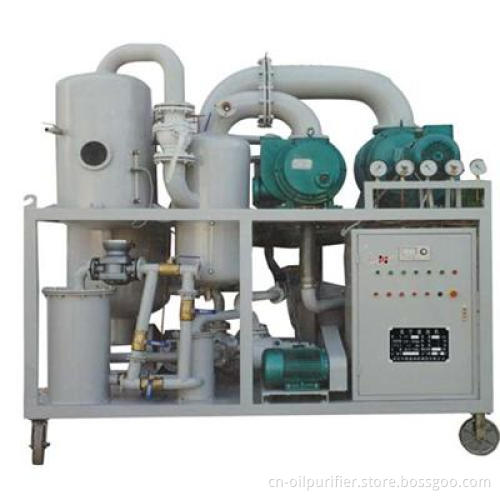

Insulating Oil Purifier With High Efficiency Vacuum System

Series ZY high efficiency vacuum insulating oil purifier, mainly for the power station, industrial and mining enterprises purifying the unqualified transformer oil, mutual inductor oil, switch oil and so on. Series ZY can remove water; Trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength. Also, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling.
Technical Parameters:
Index name Unit ZY-10 ZY-20 ZY-30 ZY-50 ZY-100 ZY-150 ZY-200 ZY-300
Flow rate L/H 600 1200 1800 3000 6000 9000 12000 18000
Working vacuum MPa -0.06 - -0.095
Working pressure MPa Temperature range C 20 -80
Dielectric strength KV > 65
Water Content ppm Gas content % Particles size mm Power supplier 380v 50Hz, 3pH (As per user's option)
Working noise dB(A) ≤ 65-85
Heating power Kw 15 15 15 30 48 60 72 90
Total power Kw 16.5 16.5 16.5 33.5 53 65 76 98
