3X42 Night Vision Monocular Max 200m

Specifications
3X42 Night Vision Monocular
Magnification: 3x
Battery model: CR123A
Illumination: IR Illuminator
Field of view: 13 degre

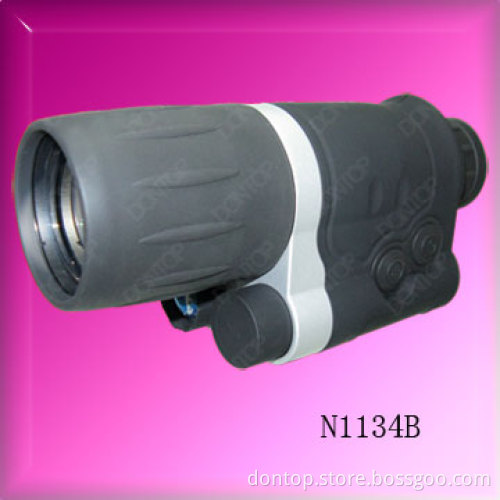

Night Vision Monocular 3X42

Introduction:
The Night Vision Monocular is a multipurpose night observation device that can be used for surveillance, security, watching wildlife and entertainment. It features a compact design and a high power Infra Red(IR) illuminator that increases the observation range in very low light conditions while remaining almost invisible to the human eye. The body is made from impact resistant rubber and plastic, colored green and black for covert use.

Specification:
Maximum operating range up to 150-200m (ambient light illumination 2-10 Lux)
Focusing range 3m- infinity
Eyepiece diopter range -5D to +5D
Power supply voltage 3V DC
Barttery CR123A
Integraed IR lamp

Safety warning
The night vision monocular has an infrared light, which cannot be seen with the naked eye. Never look directly into the light as to do so could permanently damage your eyesight.


WARNINGS:
Do not remove the objective lens cover unless in a dark area. Normal intensity lighting will damage the night vision tube.
This monocular is not waterproof-keep it away from water.


All of Part:
1. Objective lens& lens cover
2. Front focus ring
3. IR illuminator button
4. Power button
5. Eye lens, eye guard & eyepiece focus ring
6. IR illuminator
7. Battery compartment
8. Tripod mount


Installing the battery
Open the battery compartment and install the battery, making sure that the +/- symbols are correctly aligned.

Battery precaution:
Do not mix old and new batteries. Mixing old and new batteries could cause leakage of caustic acid that could cause skin burns and damage materials it contacts.
When installing batteries observe correct polarity
Keep batteries out of reach of children.
Wear gloves and use caution when removing leaking batteries. Make sure you dispose of batteries properly.

Operation:
Remember to keep the objective lens cover on in normal(daylight) condition.
Press the ON button to turn the monocular on. The tube will light up, producing a green image and the green LED next to the eyepiece will illuminate.
Set the front objective lens focus to approximately the middle of its range. Look through the monocular at an object 5-10 meters away and rotate the eyepiece focus ring until the image is focused. The eyepiece ring can then be left at this setting for future use.
The monocular is now ready for use. The front focus ring can be rotated to focus on objects at other distances.
In moderate darkness (e. G a moonlit night) the monocular can be used without the Infra Red (IR) illuminator to prolong battery life. In darker conditions (e. G. Cloudy/moonless nights) the IR illuminator can be switched on by pressing the button on the side of monocular. The red LED next to the eyepiece will illuminate while the IR illuminator is on. Do not look directly into the IR illuminator while it is switched on. To do so could seriously damage your eye sight,
To switch the monocular off, press the ON button again. After the monocular is turned off, the green LED indicator switches off immediately, but the green image remains for several minutes until the image intensifier powers down. This is completely normal and you can continue observation with the monocular during this period.
