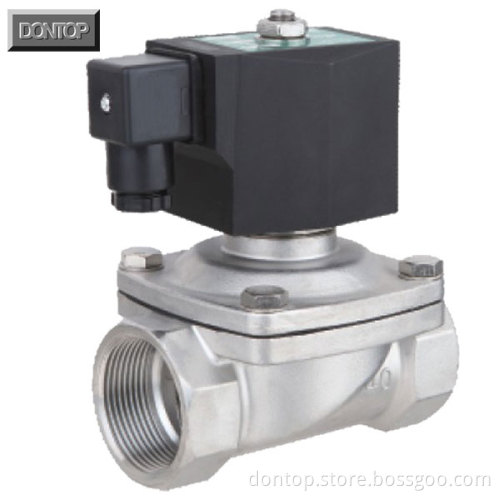

Oil Electric Solenoid Valver Made in Stainless Steel (2RS1)

Feature:

1. Solenoid valve series, specially for water or oil
2. Relates to irrigation, landscape, gardening areas.
3. Compact size
4. Good quality with reasonable price.
5. Made in high quality stainless steel.

Description:



2/2 way solenoid valve direct acting solenoid valves in brass and stainless steel body.
2/2 way solenoid valve 2RB1

Characteristic: 1. Direct lifting diaphragm construction;
2. Open from zero bar for low pressure system use
3. High frequency of DIN plug coil

Medium: Air, City Gas, Water, Oil, Petroleum, etc.

Temperature: NBR Seal: 14F to 176F, -10 to 80
EPDM Seal: 14F to 250F, -10 to 120
VITON Seal: 14F to 300F, -10 to 150

Pressure: 2W21: 0.00MPa ~ 1.0MPa

Port Size: 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2

Port Thread: BSPP, BSPT, NPT, Flange, UNF, M8X1

Orifice (mm): 12, 15, 20, 25, 32, 40, 50

Voltage: DC - 12V, 24V
AC - 24V, 120V, 240V@60HZ 110V, 220V@50HZ
Tolerance: +/- 10%

Coils: S51B, 40VA(AC), 30W(DC), IP65 100%ED
SD01B, 35VA(AC), 30W(DC), IP65, 100%ED
SD02B, flying lead 35VA(AC), 30W(DC), IP65, 100%ED

Material: Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304

2R21 Normally Closed, with Coil S51B /SD01B/SD02B
