Underwater Camera, Borehole Camera, Downhole Camera, Underwater Inspection Camera, Borehole Inspection Camera, Underwater Camera, Water Well Inspection Camera

Water Proof Borehole Inspection Camera, Underwater Camera, Water Well Inspection Camera, Borehole Surveillance Camera

Function:
1 To inspection the water leakaging of the well,
2 To imaging the blockage of the well
3 To help the repair of the well
4 Provide broadcast quality video of the underwater world
Back to the surface from up to within 1000m below,
5 This camea can be viewed in real time or recorded for later
Vieweing

Feature:
1 Super high resolution color picture
2 Low light operation
3 LED underwater light
4 Stainless steel housing
5 Military grade watertightness cable
6 Ability to attach up to deep place and stand large pressure

Specification:

Image sensor: 1/3CCD
Resolution: 850TVlines
Sensitivity: 0.1LUX
Pixel: 720*576
Camera housing material: Stainless steel
Grade: Military
Working depth: 1000m
Working temperature: -10celsius to +40celsius
Power: AC220V
Frame rate: 25frame/second
Light source: LED
Cable: Within 1000m watertightness cable
Display: 14inch LCD display
Camera angle: 45degree-60degree
Camera size: 75mm(diameter)*300mm(length)

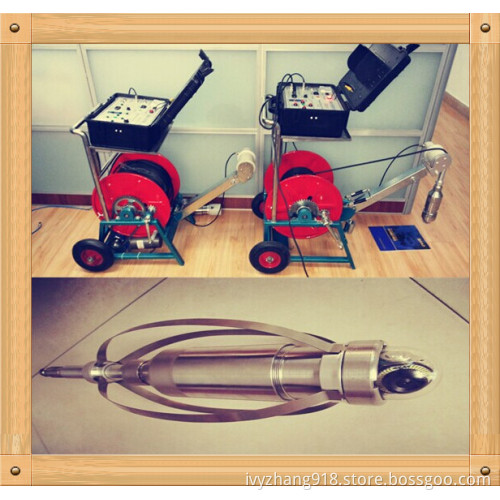

1. Ground Screen Unit


2. Probes


3. DVR and computer connection Line
