Geological Deep Well Logging JGS-1B Deep Well Measurement Equipment

Features
Extension notebook computer.
Logging can be made upward and downward
Digital and analogue signals can be received.
Auto-sampling according to the depth interval.
Specifications
12-bit A/D converter, enlargement factor k= 0.5~128
Counting channel frequency: f ≤500KHz.
Digital signals transfer frequency 9600bit/s
Analogue signals input: ≤±10V
Supply current: 2mA to 500mA (optional)
Logging speed: 0 to 30 meter/min.
Power consumption: Less than 200W
Power supply: AC220V±10% 50Hz±5%
Operation temperature: -10°C to +50°C
Dimensions: 420×260×210mm
Weight: less than 7 kg

Logging System Software
Operation system: windows98/2000/XP
Sampling interval: 1cm to 1000cm
Max depth of sampling once: 3000m (0.1m sampling interval)
Multi-parameter auto-aligns depths.
Curves of multi-parameters: up to 10.
Curve drift, anomaly deletion, smooth, inverse order, combination, segmentation, computation and so on.
Interpreting sections input and rock-formation name, thickness, bottom block depth will be formed automatically.
Curve scaled (zoom in or out).
Curve depth scales: 1:50,1:100, 1:200, 1:500 and 1:1000
Colored or Grey plot maps.
Max Map output: width 415mm, length 2310mm.

Specifications of JCH-3 Winch Controller
Speed Range: 1 to 29.9 meters per minute.
Depth Error: ≤0.4‰
Depth Range: 0 to 9999.99 meters
Power Supply: AC220V±10% 50Hz±5%
Continually working time: less than 24 hours
Depth pulse's unit: 0.25mm per pulse
Power Consumption: Less than 1.5kW
Work temperature range: -10°C to +70°C
Dimensions: 305×200×220 mm.
Weights: less than 3 kg

WINCHES
3000m Frequency-control Auto Winch
2000m Frequency-control Auto winch
1000m Frequency-control Auto Winch
500m Manual Winch
300m Auto-arrayed Manual Winch

LOGGING PROBES
M552/SM552 Integrated Wall-Cling Probe
DsCD Logging (double-spaced compensated density)
Natural Gamma Logging
Three-lateral Resistivity Logging
Caliper Logging
Spontaneous Potential Logging
M433/SM433 Dual-Density Probe
R411/SR411 Nature Gamma Probe
GJ-451/SGJ-451 Cement Bond Probe
X411/SX411 Three-lateral Resistivity Probe
S524/SS524 Acoustic Wave Probe
JCS-1/SJSC-1 Digital Inclination Probe
J511/SJ511 Big-hole Caliper Prob
W422/SW422 Temperature and Liquid Resistivity Combined Probe
J411/SJ411 Caliper Probe
H411/SH411 Magnetic Susceptibility Probe
NP442 Multi-Channel Spectrum Probe
Z422/SZ422 Neutron Combined Probe
LLY-1/SLLY-1 Flow Probe
Y411 Fluorescence Probe

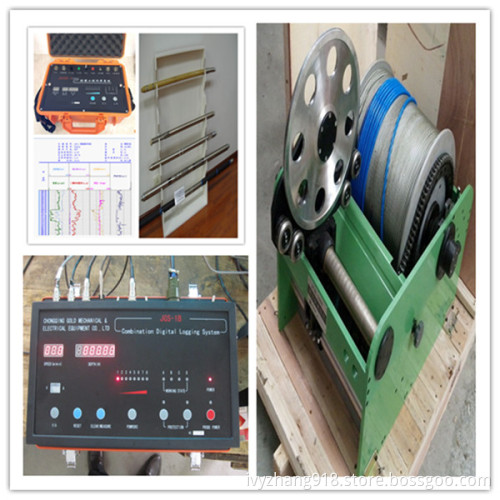

1. Total System
 2.  Downhole probe
