Downhole Camera, Borehole Camera, Deep Water Camera, Water Well Camera, Underwater Camera, Rotation Camera, Monitor Camera, Well Inspection Camera

1000m Borehole Monitoring Camera

Function:
1 To inspection the water leakaging of the well,
2 To imaging the blockage of the well
3 To help the repair of the well
4 Provide broadcast quality video of the underwater world
Back to the surface from up to within 1000m below,
5 This camea can be viewed in real time or recorded for later
Vieweing

Feature:
1 Super high resolution color picture
2 Low light operation
3 LED underwater light
4 Stainless steel housing
5 Military grade watertightness cable
6 Ability to attach up to deep place and stand large pressure
Of water

Technical Parameter:
Image sensor: 1/3CCD
Resolution: 480TVlines
Sensitivity: 0.1LUX
Pixel: 720*576
Camera housing material: Stainless steel
Grade: Military
Working depth: 2000m
Working temperature: -10celsius to +40celsius
Power: AC220V
Frame rate: 25frame/second
Light source: LED
Cable: Within 1000m watertightness cable
Display: 14inch LCD display
Camera angle: 45degree-60degree
Camera size: 75mm(diameter)*300mm(length)

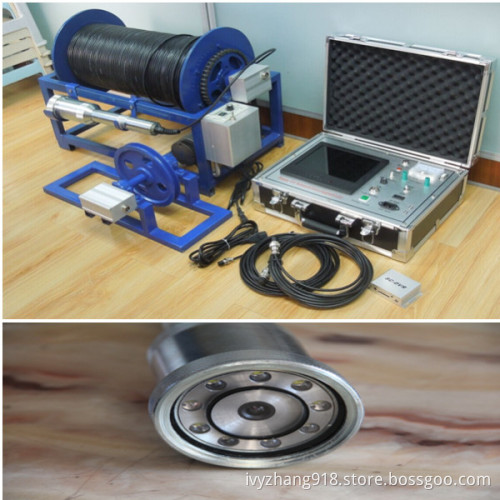

1. Ground Monitoring Unit


2. Rotary Camera and Winch

3. Sony DVD Record and USB line to Computer
