Product Description

Geological Ground Water Resistivity Survey

Main Applications and Features
By utilizing the apparent resistivity parameters, it is widely used in hydrology, environmental protection, engineering geophysical exploration, metal and non-metal mineral resources exploration.
Microcomputer controlled, direct-reading resistivity, various electrode arranging mode, data protection against power-failure
This instrument applies to Electrical Prospecting such as Vertical Electrical Sounding, Electrical Profiling, Charging Method and Spontaneous Potential Method, etc. On ground and in trench.

Technical Specifications

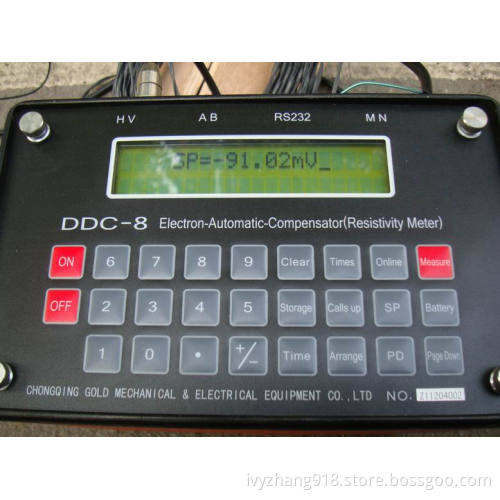

Model & Name:	DDC-8 500M Electronic Auto-Compensation(Resistivity)Instrument
Max. Power Supply Voltage:	700V
Max. Power Supply Current:	3A
Voltage Measuring Range:	±3000mV
Voltage Measuring Accuracy:	±1.5%±0.1mV
Current Measuring Range:	0.1mA~3000mA
Current Measuring Accuracy:	±1.5%±0.1mA
SP Compensation Range:	-1000mV~+1000mV
Instrument Input Impedance:	≥30MΩ
Operating Temperature:	-10°C~50°C
Size:	244×154×237mm
