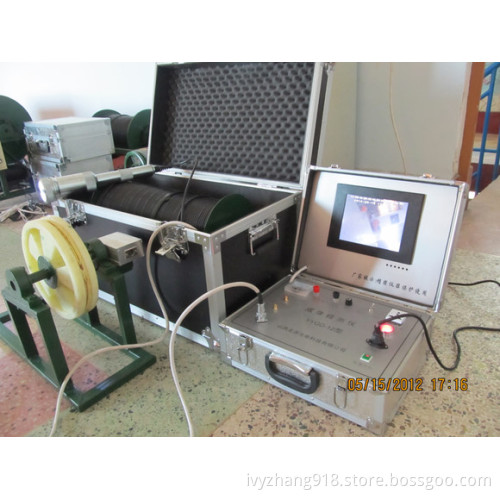

Oil Well 2000M Down Hole Monitoring Camera

Oil Well 2000M Down Hole Monitoring Camera


Function :
         1  To inspection the water leakaging of the well ,
         2  To imaging the blockage of the well
         3  To help the repair of the well
         4  Provide broadcast quality video of the underwater  world
            back to the surface from up to within 1000m below,
         5  This camea can be viewed in real time or recorded for later
            vieweing

Feature:
         1 Super high resolution color picture
         2 Low light operation
         3 Led  underwater light
         4 Stainless steel housing
         5 Military grade watertightness cable
         6 Ability to attach up to deep place and stand large pressure
           of water

Technical Parameter:
Image sensor:1/3CCD
Resolution:480TVlines
Sensitivity:0.1LUX
Pixel:720*576
Camera housing material:stainless steel
Grade: military
Working depth: 2000m
Working temperature:-10celsius to +40celsius
Power:AC220V
Frame rate:25frame/second
Light source: LED
Cable:within 1000m watertightness cable
Display:14inch LCD display
Camera angle:45degree-60degree
Camera size:75mm(diameter)*300mm(length)
