Product Description

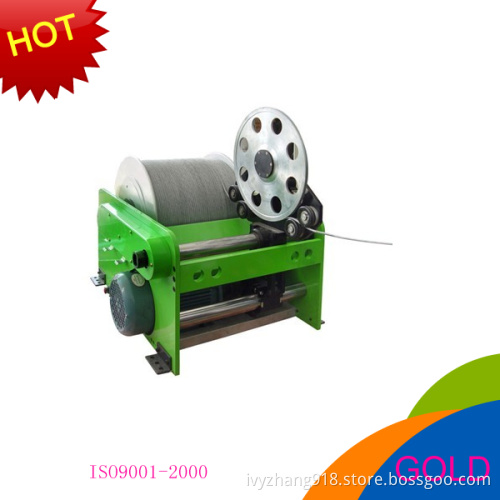

Geophysical Well Logging Wireline Winch

Main Applications and Features
Adopt advanced frequency conversion technology to control the winch
Automatic constant speed and manual speed control, automatic overload protection
Automatic addition and subtraction to calculate the depth, with depth error automatic compensation.
Use of commercial power or AC power generator
Self-locking function while winch ascending and descending

Steady in velocity without jitter in full speed range
Technical Specifications
Speed Range: 1~29.9 m/min
Depth Error: ≤ 0.4‰
Depth Range: 0~9999.99 m
Power Supply: AC220V± 10% 50Hz ± 5%
Continuous Working Time: ≤ 24 hr
Depth Pulse Equivalent: 0.25mm/pulse
Working Temperature: -10~ +70 deg. C
Volume: 305× 200× 220mm,
Weight: <3kg
Power Consumption: <1.5kW
Constant Speed Range: 0.5~20m/min, Error: ± 10%, ± 1 digit

Parameters	3000meters frequency control	2000meters frequency control winch	1000meters frequency control winch	300meters frequency control	500meters frequency control winch
type	JCH-3000	JCH-2000	JCH-1000	JCH-300	JCH-500
D imensions	940×800×720	920×680×700	710×620×670	560×490×360	540×400×380
Weight	150 kg	120 kg	110 kg	25 kg	18 kg
M otor Power	2.2 kw	1.5 kw	1.1 kw	manual	manual
Pulse Number	1 circle per 4000	1 circle per 4000	1 circle per 4000	1 circle per 4000
Reelable L ength	3100 M	2200 M	1200 M	360 M	700 M
Reelable L ength	3100 M	2200 M	1200 M	360 M	370 (Φ7mm rubber cable)
Core Number	6 core	6 core	6 core	6 core	6 core
