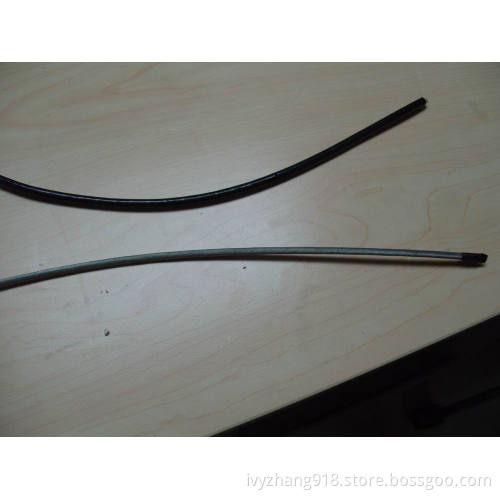

Geophysical Borehole Logging Armoured Wireline
1.Four Cores Armoured Cable
2. For geology Use
3. Special cable for well logging

Type	Nominal Diameter (mm)	Conductor nominal cross section (mm²)	Conductor structure No. / diameter	Rated breaking strength(kN)	Conductor DC Resistance @ 20°C (Ω/km)	Insulation resistance @ 20°C (MΩ/km)	Capacitor @ 1kHz (μF/km)	Frequency voltage test
WGSB-4.7	4.70	0.56	7/0.32	15	≤36.00	≥200	≤0.17	1KV 5 min No breakdown
W4B-4.7	4.70	0.22	7/0.20	13	≤84.30	≥200	≤0.19
WGSB-5.6	5.60	1.01	19/0.26	25	≤18.10	≥200	≤0.22
W3BP-5.6	5.60	0.24	7/0.21	25	≤84.30	≥200	≤0.17
W4BP-5.6	5.60	0.24	7/0.21	25	≤84.30	≥200	≤0.15
WGSB-8.0	8.00	1.02	7/0.43	45	≤18.10	≥200	≤0.14
W3BP-8.0	8.00	0.56	7/0.32	45	≤36.00	≥200	≤0.18
W4BP-8.0	8.00	0.49	7/0.30	45	≤36.00	≥200	≤0.20
W7B-6.4	6.40	0.24	7/0.21	25	≤84.30	≥200	≤0.13
W7BP-10.8	10.80	0.56	7/0.32	80	≤36.00	≥200	≤0.19
W3BP-11.8	11.80	0.56	7/0.32	80	≤18.10	≥200	≤0.14
W7BP-11.8	11.80	0.56	7/0.32	80	≤36.00	≥200	≤0.14
W7BPP-11.8	11.80	0.56	7/0.32	80	≤36.00	≥200	≤0.16
W7BP-12.6	12.60	0.56	7/0.32	80	≤36.00	≥200	≤0.14
W7BP-13.2	13.20	0.56	7/0.32	85	≤36.00	≥200	≤0.14
