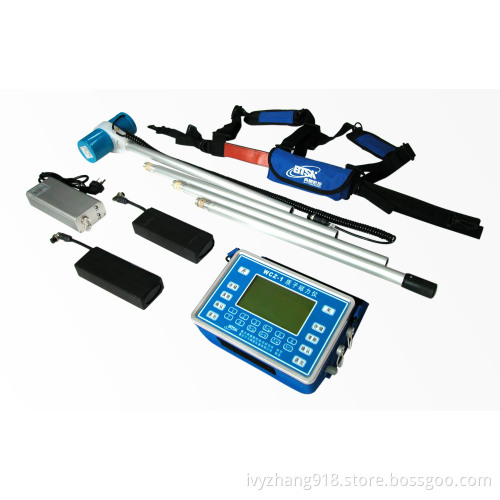

WCZ-1 Proton Magnetometer For Mineral Prospecting, Magnetic Exploration


WCZ-1 proton magnetometer is developed especially for home practical instance by referring abroad technique. It can measure magnetic in precision of 1nT. The resolving power can reach 0.1nT. These are in accord with the requirement of former Ministry of Geologic and Mineral, China. Its large memory, high resolution, agility make it a portable, mobile, base station fitted magnetometer. By changing the structure of the sonde, it can make the horizontal gradient measurement and the vertical gradient measurement at a resolution of 0.1nT.

Applications
1. Mineral prospecting, such as iron ore, lead-zinc mine, copper mine.
2. Cooperative mine prospecting, study the ore body's burial depth, dipping and continuity, study the ore body's shape, size, estimate mineral bed's scale.
3. Prospecting for gas or oil, research geologic structure relevant to gas or oil
4. Geologic survey, geologic mapping
5. Ground diurnal variation for aero-magnetic and marine magnetic survey
6. Faults orientation.
7. Archaeology
8. Hydrology
9. Engineering prospecting, e. G, pipeline finding.
10. Earthquake monitoring, volcano monitoring, and other environmental and disaster.
11. Small ferromagnetic objects'finding.

Technical specifications
1. Measurement range: 20000nT~100000nT
2. Measurement precision: 1nT
3. Resolving power: 0.1T
4. Allowed gradient: 5000Nt /m
5. Data stored: 100, 000, out-power protection
6. LCD screen: 240x128
7. Keyboard: 22 keys
8. Interface: RS-232C standard serial port
9. Power: Outside rechargeable batteries, 12V/2.3Ah, also power outside
10. Bulk of mainframe: 230mmx155mmx65mm
11. Weight of mainframe: 2.5kg(include batteries)
12. Bulk of sonde: 75mmx155mm
13. Weight of sonde: 0.8kg.
14. Working temperature: -10° C~+50° C
