Product Description

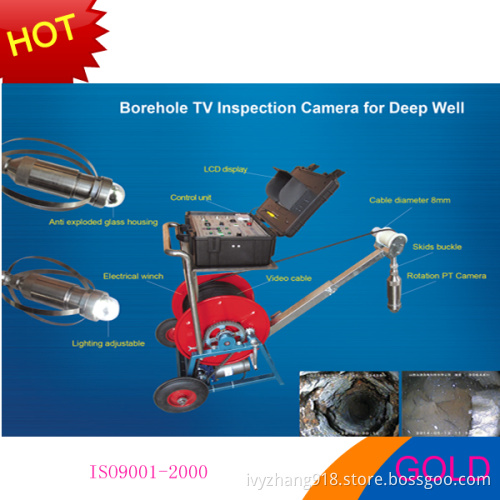

Borehole Inspection Camera, Bore Well Camera, Bore Hole Video Camera, Down Hole Camera, Underwater Inspection Camera, Water Well Camera

Main Applications and Features

JKX-2 Drilling Full Hole Wall Imaging System adopts reflective axicon lens to take 360° hole wall images, image acquisition and processing by means of computer to form a continuous hole wall developed image. The hole wall image are developed following the order NESWN. The longitude connection of images are jointed as per the order of depth, thus the overall hole-wall image is fully understand at a glance.
Data Processing Function
· Browsing, real-time display of position and depth
· Marking of images and literal texts
· Making of interpretation lines on images
· For convolution rotation, see coregraph
· Calculate the inclination of stratum construction
· Measure the thickness of rock stratum and the width of cracks

Technical Specifications

1Vp-p PAL TV Signal 75Ω Video Output
1Vp-p PAL TV Signal 75Ω Video Output
Definition: 450TVL
Viewing Angle: 360° Hole Wall
Lighting: Built-in K3200° Trichromatic Lighting Ring
Probe Diameter: φ70mm
Adaptation Aperture: φ75~φ300mm
Power Supply: AC220V±10% 50Hz
Software Operating Environment: Win2000/XP
Adapted Hole Depth: 0~3000m Clear Water Hole or Dry Hole

Function :
          1 To inspection the water leakaging of the well ,
          2 To imaging the blockage of the well
          3 To help the repair of the well
          4 Provide broadcast quality video of the underwater world
             back to the surface from up to within 1000m below,
          5 This camea can be viewed in real time or recorded for later
             vieweing

Feature:
          1 Super high resolution color picture
          2 Low light operation
          3 Led underwater light
          4 Stainless steel housing
          5 Military grade watertightness cable
          6 Ability to attach up to deep place and stand large pressure
            of water

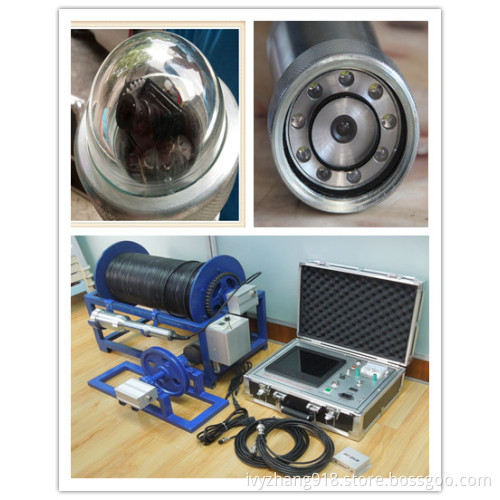

More Pictures:
1. Ground Instrument

2. 360º Camera Probe: there are 11 LED lights

3. 1. Electrical winch with cable
