Detailed Product Description

1. Geophysical Well Logging Syetem
2.Digital and analogue signals can be received
3.Upward and downward measure
4. 5000 mtr

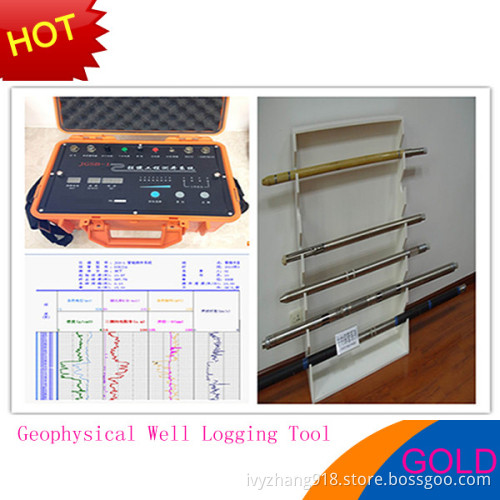

Geophysical Well Logging Syetem JGS-1B  Automatic Engineeing Logging System

Features

Extension notebook computer.

Logging can be made upward and downward

Digital and analogue signals can be received.

Auto-sampling according to the depth interval.

Specifications

12-bit A/D converter, enlargement factor k= 0.5~128

Counting channel frequency:  f ≤500KHz.

Digital signals transfer frequency 9600bit/s

Analogue signals input:  ≤±10V

Supply current: 2mA to 500mA (optional)

Logging speed: 0 to 30 meter/min.

Power consumption: Less than 200W

Power supply: AC220V±10%  50Hz±5%

Operation temperature: -10°C to +50°C

Dimensions:  420×260×210mm

Weight: less than 7 kg

Logging System Software

Operation system: windows98/2000/XP

Sampling interval: 1cm to 1000cm

Max depth of sampling once: 3000m (0.1m sampling interval)

Multi-parameter auto-aligns depths.

Curves of multi-parameters:  up to 10.

Curve drift, anomaly deletion, smooth, inverse order, combination, segmentation, computation and so n.Intepreting sections input and rock-formation name, thickness, bottom block depth will be formed aumatically.Curve scaled (zoom in or out).

Curve depth scales:  1:50,1:100, 1:200, 1:500 and 1:1000

Colored or Grey plot maps.

Max Map output: width 415mm, length 2310mm.

Spifications of JCH-3 Winch Controller


Speed Range:   1 to 29.9 meters per minute.

Depth Error:  ≤0.4‰

Depth Range:  0 to 9999.99 meters

Power Supply:  AC220V±10%  50Hz±5%

Continually working time: less than 24 hours

Depth pulse's unit:  0.25mm per pulse

Power Consumption:  Less than 1.5kW

Work temperature range: -10°C to +70°C

Dimsions:  305×200×220 mm.

Weights:  less than 3 kg

 WINCHES

3000m Frequency-control Auto Winch

2000m Frequency-control Auto winch

1000m Frequency-control Auto Winch

500m Manual Winch

300m Auto-arrayed Manual Winch

LOGGING PROBES

      M552/SM552 Integrated Wall-Cling Probe

      DsCD Logging (double-spaced compensated density)

      Natural Gamma Logging

      Three-lateral Resistivity Logging

      Caliper Logging

      Spontaneous Potential Logging

      M433/SM433 Dual-Density Probe

      R411/SR411 Nature Gamma Probe

      GJ-451/SGJ-451 Cement Bond Probe

      X411/SX411 Three-lateral Resistivity Probe

      S524/SS524 Acoustic Wave Probe

      JCS-1/SJSC-1 Digital Inclination Probe

      J511/SJ511 Big-hole Caliper Prob

      W422/SW422 Temperature and Liquid Resistivity Combined Probe

      J411/SJ411 Caliper Probe

      H411/SH411 Magnetic Susceptibility Probe

      NP442 Multi-Channel Spectrum Probe

      Z422/SZ422 Neutron Combined Probe

      LLY-1/SLLY-1 Flow Probe

      Y411 Fluorescence Probe
