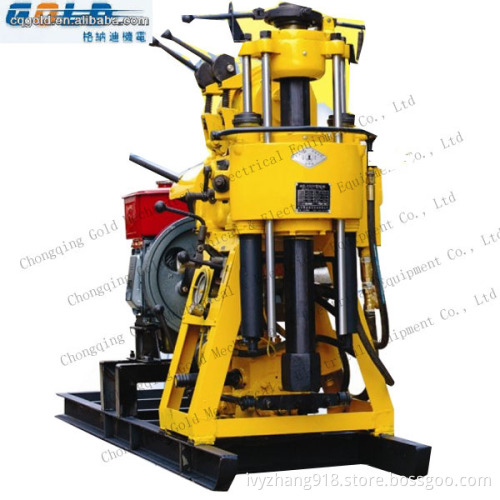

Professional Water Well and Core Drilling Rig and Machine Manufacturer

Suit scope:

Geology general check exploration, Earth physics exploration, Road and hihg layer buiding ground

Survey, Well, last opening etcetera drilling engineering

1) Unity machine parameter

Drilling depth...200m
Maximum open hole caliber...400mm
End hole caliber...75mm
Drill rod caliber...50mm
Drilling angle...90~75
Drill weight(No include power)...760kg
Unity machine dimensions...2.75X0.95X1.60m
Distance betweent drill and hole...450mm

2) Spindle

Spindle speed...71.142.310.620r/min
Spindle stroke...450mm

3) Hoist

Max. Xingle line hoisting capacity...2008Kb
Reel lifting speed...17, 35, 75, 160rm/s
Tightrope caliber...13mm
Tightrope cubic measure...35mm
Hug follgate belt width...70mm

4)Mud pump

Type: Horizontal single urn twin-action
Displacement...180L/min
Maximum pressure...1.5Mpa
Work pressure...0.7Mpa
Water inlit caliber...50mm
Water to exit caliber...45mm

5)Power

Dieselengine...22HP
Speedlimit...2200r/min
Electric motor...15kw
Speedlimit...1460r/min
