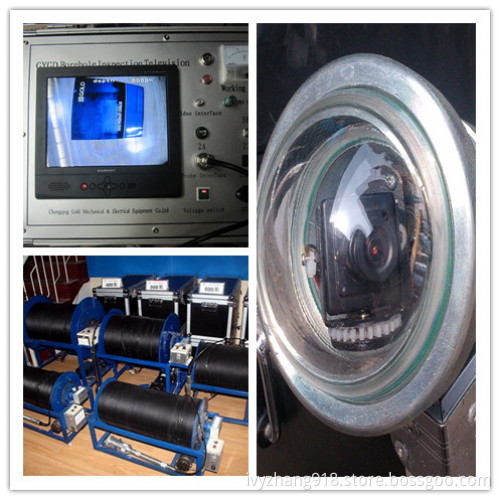

Underground Borehole Camera for Water Well Camera

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China
Payment Type:	L/C, T/T, Western Union

Product Description

Camera
1. Camera size: 23mmx120mm
2. Sensor size: 1/4 inch
3. View angle: 120°
4. LEDs adjustable
5. Camera work current: 100mA
6. Camera power supply: DC12V
7. Camera light: 12PCS white LEDs
8. Waterproof: IP68
9. Camera glass material: Sapphire glass
10. Camera shell material: Stainless steel

Cable wheel
1. Cable size: Ø 320mmX110(h)
2. Wire material: Fiberglass rod
3. Fiberglass length: 20m(standard)
4. Fiberglass diameter: Ø 4.8mm
5. Fiberglass color: Yellow

Skid
Skid size
1) SKIDS1: Ø 40mm
2) SKIDS2: Ø 80mm

DVR
1. DVR power supply: 12V
2. DVR work cuttent: 200mA
3. Storage medium: SD card(max 32G)
4. Digital clock and digital calendar
5. Total pixels: 720X576
6. 12V 4000mAh li-lion battery(18650), using time: 7hours
7. Input: AC90-260V; Output: DC 12V/1000mA
8. Output cable length: 1.5m
9. DC plug diameter: 2.1mm

Minitor
1. Monitor size: 7inch TFT color monitor
2. Monitor Total Pixels: 1440X234
3. Monitor power supply: DC 12V
4. OSD language: English
5. Up. Down, left, right adjustable
6. 16: 9&4: 3model
7. Sunshade include

Keyboard
1. Size: 323X130X11mm
2. Language: English
3. Keyboard interface: PS2 OR USB
4. Text edit line: PAL 28 letter 15 line; NTSC 26 letter 12 line
5. Max edit page: 4pages.

No.	Product Configurations	Dimension	Specification
1	Probe	Dia.: 80mm Length: 470mm	(1) Front lens are imported resins, (2) Not easy damaged (3) Pressure is 16-30Mpa (can be under 3000m deep water) (4) Light: 6-12 LED Lights
2	Camera		(1) SONY inductor 1/3' ' CCD (2) Image definition is HD 750 TVL (3)Watertight (4) Camera Angle: 180/360 degree
3	Professional logging cable	Length: 0-2500m(optional)	(1) With steel wire, (2) Tension is 150kg, (3) Destroy tension is 260kg
4	Main Control Host		(1) 220V/380V/12V optional. (2) LCD dispaly can be 8/15inches. (3) Aircraft grade aluminum alloay material
5	Downhole Pulley		Can change the booth size according to the well mouth size
6	Logging Winch		Hand/Electrical winch
7	Video save		(1) DVR with SD card (optional) (2) Discs and U disk can be used
