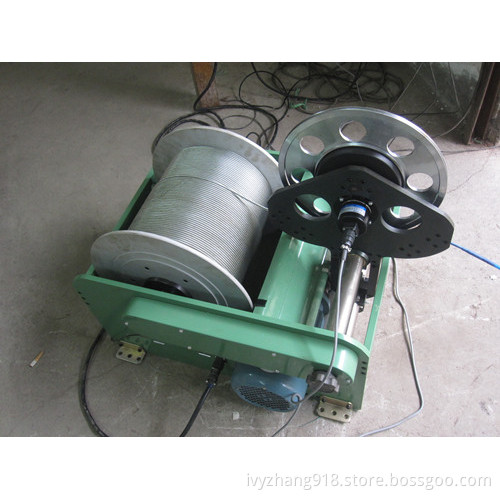

1000m Geophysics Logging Winch

1000m Geophysics Logging Winch

Main Applications and Features

1. Adopt advanced frequency conversion technology to control the winch
2. Automatic constant speed and manual speed control, automatic overload protection
3. Automatic addition and subtraction to calculate the depth, with depth error automatic compensation.
4. Use of commercial power or AC power generator
5. Self-locking function while winch ascending and descending
6. Steady in velocity without jitter in full speed range.

Technical Specifications
1. Speed Range: 1~29.9 m/min2. Depth Error: ≤ 0.4‰
3. Depth Range: 0~9999.99 m
4. Power Supply: AC220V± 10% 50Hz ± 5%
5. Continuous Working Time: ≤ 24 hr
6. Depth Pulse Equivalent: 0.25mm/pulse
7. Working Temperature: -10° C~ +70° C
8. Volume: 305× 200× 220mm,
9. Weight: <3kg
10. Power Consumption: <1.5kW
11. Constant Speed Range: 0.5~20m/min, Error: ± 10%, ± 1 digit.
