1. Geophysical Well Logging Syetem
2. Digital and analogue signals can be received
3. Upward and downward measure
4.5000 mtr

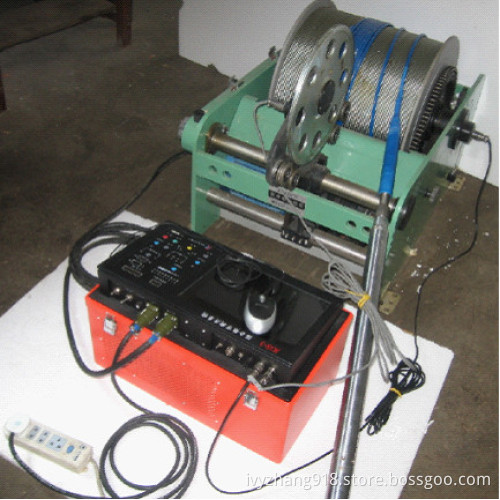

Geophysical Well Logging Syetem JGS-1B Automatic Engineeing Logging System

Features

Extension notebook computer.
Logging can be made upward and downward
Digital and analogue signals can be received.
Auto-sampling according to the depth interval.
Specifications

12-bit A/D converter, enlargement factor k= 0.5~128
Counting channel frequency: F ≤ 500KHz.
Digital signals transfer frequency 9600bit/s
Analogue signals input: ≤ ± 10V
Supply current: 2mA to 500mA (optional)
Logging speed: 0 to 30 meter/min.
Power consumption: Less than 200W
Power supply: AC220V± 10% 50Hz± 5%
Operation temperature: -10° C to +50° C
Dimensions: 420× 260× 210mm
Weight: Less than 7 kg

Logging System Software


Operation system: Windows98/2000/XP
Sampling interval: 1cm to 1000cm
Max depth of sampling once: 3000m (0.1m sampling interval)
Multi-parameter auto-aligns depths.
Curves of multi-parameters: Up to 10.
Curve drift, anomaly deletion, smooth, inverse order, combination, segmentation, computation and so n. Intepreting sections input and rock-formation name, thickness, bottom block depth will be formed aumatically. Curve scaled (zoom in or out).
Curve depth scales: 1: 50, 1: 100, 1: 200, 1: 500 and 1: 1000
Colored or Grey plot maps.
Max Map output: Width 415mm, length 2310mm.

Spifications of JCH-3 Winch Controller

Speed Range: 1 to 29.9 meters per minute.
Depth Error: ≤ 0.4‰
Depth Range: 0 to 9999.99 meters
Power Supply: AC220V± 10% 50Hz± 5%
Continually working time: Less than 24 hours
Depth pulse's unit: 0.25mm per pulse
Power Consumption: Less than 1.5kW
Work temperature range: -10° C to +70° C
Dimsions: 305× 200× 220 mm.

Weights: Less than 3 kg
WINCHES

3000m Frequency-control Auto Winch
2000m Frequency-control Auto winch
1000m Frequency-control Auto Winch
500m Manual Winch
300m Auto-arrayed Manual Winch

LOGGING PROBES

M552/SM552 Integrated Wall-Cling Probe
DsCD Logging (double-spaced compensated density)
Natural Gamma Logging
Three-lateral Resistivity Logging
Caliper Logging
Spontaneous Potential Logging
M433/SM433 Dual-Density Probe
R411/SR411 Nature Gamma Probe
GJ-451/SGJ-451 Cement Bond Probe
X411/SX411 Three-lateral Resistivity Probe
S524/SS524 Acoustic Wave Probe
JCS-1/SJSC-1 Digital Inclination Probe
J511/SJ511 Big-hole Caliper Prob
W422/SW422 Temperature and Liquid Resistivity Combined Probe
J411/SJ411 Caliper Probe
H411/SH411 Magnetic Susceptibility Probe
NP442 Multi-Channel Spectrum Probe
Z422/SZ422 Neutron Combined Probe
LLY-1/SLLY-1 Flow Probe
Y411 Fluorescence Probe
