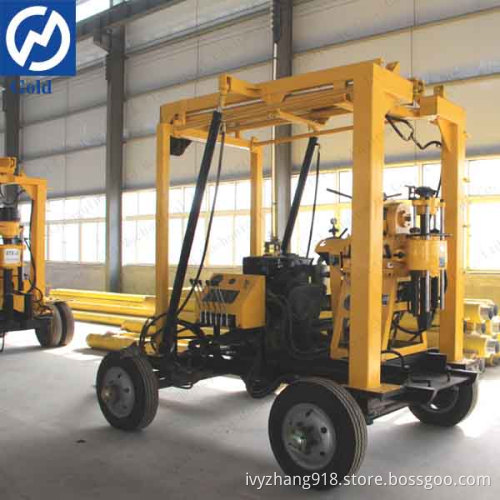

Trailer Mounted Water Well Drilling Machine and Borehole Drilling Rig

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T

Product Description

Main Features:

1. The machine is equipped with crawler chassis device, easy to move and speed fast, the crawler chassis' Material system is very resistent steel mill.

2. Hydraulic oil pressure feed device, improve drilling efficiency.

3. Hydraulic chuck, can complete no-- stopping rotating.

4. Pressure gauge display the condition of bottom drilling hole.

5. Drilling mast controlled by hydraulic cylinder. Improve the efficiency.

6. Diesel engine adopt the electric starter, to reduce the labor intensity.

Drilling depth	m		100				250	300		600
Drilling DI	mm		300				200	150		75
Open hole DI	mm		300
End hole DI	mm		75
Drilling rod	mm		Φ60
Drilling angle			90°-65°
Rotary Spindle
Spindle forward speed					r/min				30-1050
Spindle reverse speed					r/min				29-137
Spindle stroke					mm				560
Spindle inner diameter					mm				96
Spindle lifting capacity					KN				60
Main Winch ( drive hydraulic system)
Single line lifting speed						m/min			0-45
Hug floodgate belt width						mm			90
Tightrope diameter						mm			14
Hoist single line lifting capacity						KN			40
Roller diameter						mm			200
Roller cubic measure						m			30
Mud pump
Horizontal Triplex BW-250 mud pump
Displacement				L/min					250
Work pressure				Mpa					7
Water inlet caliber				mm					75
Water to exit caliber				mm					50
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure									63mL/r 20Mpa
Behind displacement,pressure									25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp							4100# 40HP
Electric motor		KW							Y180L-4 22KW
