Geophysical Survey Equipmemt with Profile Imaging Software for Underground Water Detector

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T

Product Description

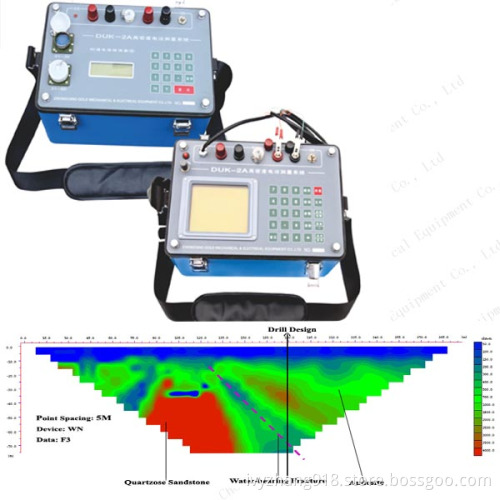

DC Resistivity Meter & IP Instruments for Underground Water Finder and Metal and Non-metal Resource Detector

Main Characteristic:

1. By utilizing the apparent resistivity parameters, it is widely used in hydrology, environmental protection, engineering geophysical exploration, metal and non-metal mineral resources exploration.

2. Easily can observe the apparent resistivity and apparent polarizability at the same time.

3. Measurement and control host can work standalone and it has all the functions of DZD-6A multi-functional direct current instrument.

System components:

1. Measurement and control host (DZD-6A multi-functional direct current instrument);

2. DUK-2A type 60-channel or 120-channel multiplex electrode switch;

3. Cables, electrodes and other related accessories.

Model & Name:	DZD-6A Multi-functional Direct Current ( Induced polarization ) Instrument
Max. Power Supply Voltage:	900V
Max. Power Supply Current:	5A
Voltage Measuring Range:	±6000mV
Voltage Measuring Accuracy:	(Vp>10mV) ±5%, ±1 digit; (Vp<10mV) ±1%, ±1 digit
Current Measuring Range:	0.1mA~3000mA
Current Measuring Accuracy:	Ip>10mA) ±5%, ±1 digit; (Ip<10mA) ±1%, ± digit
Interference Suppression on 50Hz Power Frequency	Better than 80dB
SP Compensation Range:	-1000mV~+1000mV
Instrument Input Impedance:	≥50MΩ
Operating Temperature:	-10 °C ~50 °C , 95%Rh
Machine Size:	305×200×202mm
