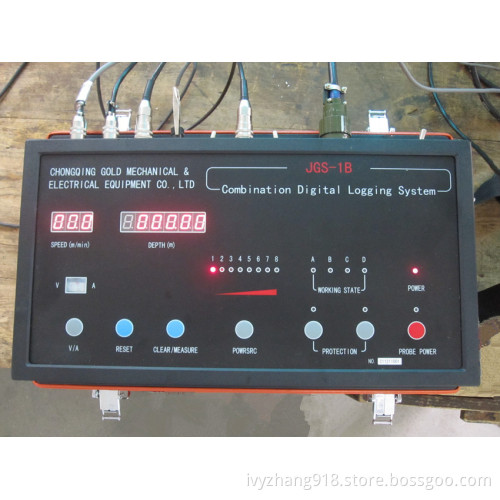

Geologger, Geologging, Borehole Logging Systems
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Chongqing, China |
---|---|
Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Product Description
Features
1. Extension notebook computer.
2. Logging can be made upward and downward
3. Digital and analogue signals can be received.
4. Auto-sampling according to the depth interval.
Specifications
1.12-bit A/D converter, enlargement factor k= 0.5~128
2. Counting channel frequency: F ≤ 500KHz.
3. Digital signals transfer frequency 9600bit/s
4. Analogue signals input: ≤ ± 10V
5. Supply current: 2mA to 500mA (optional)
6. Logging speed: 0 to 30 meter/min.
7. Power consumption: Less than 200W
8. Power supply: AC220V± 10% 50Hz± 5%
9. Operation temperature: -10° C to +50° C
10. Dimensions: 420× 260× 210mm
11. Weight: Less than 7 kg
Logging System Software
1. Operation system: Windows98/2000/XP
2. Sampling interval: 1cm to 1000cm
3. Max depth of sampling once: 3000m (0.1m sampling interval)
4. Multi-parameter auto-aligns depths.
5. Curves of multi-parameters: Up to 10.
6. Curve drift, anomaly deletion, smooth, inverse order, combination, segmentation, computation and so on.
7. Interpreting sections input and rock-formation name, thickness, bottom block depth will be formed automatically.
8. Curve scaled (zoom in or out).
9. Curve depth scales: 1: 50, 1: 100, 1: 200, 1: 500 and 1: 1000
10. Colored or Grey plot maps.
11. Max Map output: Width 415mm, length 2310mm.
Specifications of JCH-3 Winch Controller
1. Speed Range: 1 to 29.9 meters per minute.
2. Depth Error: ≤ 0.4‰
3. Depth Range: 0 to 9999.99 meters
4. Power Supply: AC220V± 10% 50Hz± 5%
5. Continually working time: Less than 24 hours
6. Depth pulse's unit: 0.25mm per pulse
7. Power Consumption: Less than 1.5kW
8. Work temperature range: -10° C to +70° C
9. Dimensions: 305× 200× 220 mm.
10. Weights: Less than 3 kg
WINCHES
3000m Frequency-control Auto Winch
2000m Frequency-control Auto winch
1000m Frequency-control Auto Winch
500m Manual Winch
300m Auto-arrayed Manual Winch
LOGGING PROBES
M552/SM552 Integrated Wall-Cling Probe
DsCD Logging (double-spaced compensated density)
Natural Gamma Logging
Three-lateral Resistivity Logging
Caliper Logging
Spontaneous Potential Logging
M433/SM433 Dual-Density Probe
R411/SR411 Nature Gamma Probe
GJ-451/SGJ-451 Cement Bond Probe
X411/SX411 Three-lateral Resistivity Probe
S524/SS524 Acoustic Wave Probe
JCS-1/SJSC-1 Digital Inclination Probe
J511/SJ511 Big-hole Caliper Prob
W422/SW422 Temperature and Liquid Resistivity Combined Probe
J411/SJ411 Caliper Probe
H411/SH411 Magnetic Susceptibility Probe
NP442 Multi-Channel Spectrum Probe
Z422/SZ422 Neutron Combined Probe
LLY-1/SLLY-1 Flow Probe
Y411 Fluorescence Probe
1. Extension notebook computer.
2. Logging can be made upward and downward
3. Digital and analogue signals can be received.
4. Auto-sampling according to the depth interval.
Specifications
1.12-bit A/D converter, enlargement factor k= 0.5~128
2. Counting channel frequency: F ≤ 500KHz.
3. Digital signals transfer frequency 9600bit/s
4. Analogue signals input: ≤ ± 10V
5. Supply current: 2mA to 500mA (optional)
6. Logging speed: 0 to 30 meter/min.
7. Power consumption: Less than 200W
8. Power supply: AC220V± 10% 50Hz± 5%
9. Operation temperature: -10° C to +50° C
10. Dimensions: 420× 260× 210mm
11. Weight: Less than 7 kg
Logging System Software
1. Operation system: Windows98/2000/XP
2. Sampling interval: 1cm to 1000cm
3. Max depth of sampling once: 3000m (0.1m sampling interval)
4. Multi-parameter auto-aligns depths.
5. Curves of multi-parameters: Up to 10.
6. Curve drift, anomaly deletion, smooth, inverse order, combination, segmentation, computation and so on.
7. Interpreting sections input and rock-formation name, thickness, bottom block depth will be formed automatically.
8. Curve scaled (zoom in or out).
9. Curve depth scales: 1: 50, 1: 100, 1: 200, 1: 500 and 1: 1000
10. Colored or Grey plot maps.
11. Max Map output: Width 415mm, length 2310mm.
Specifications of JCH-3 Winch Controller
1. Speed Range: 1 to 29.9 meters per minute.
2. Depth Error: ≤ 0.4‰
3. Depth Range: 0 to 9999.99 meters
4. Power Supply: AC220V± 10% 50Hz± 5%
5. Continually working time: Less than 24 hours
6. Depth pulse's unit: 0.25mm per pulse
7. Power Consumption: Less than 1.5kW
8. Work temperature range: -10° C to +70° C
9. Dimensions: 305× 200× 220 mm.
10. Weights: Less than 3 kg
WINCHES
3000m Frequency-control Auto Winch
2000m Frequency-control Auto winch
1000m Frequency-control Auto Winch
500m Manual Winch
300m Auto-arrayed Manual Winch
LOGGING PROBES
M552/SM552 Integrated Wall-Cling Probe
DsCD Logging (double-spaced compensated density)
Natural Gamma Logging
Three-lateral Resistivity Logging
Caliper Logging
Spontaneous Potential Logging
M433/SM433 Dual-Density Probe
R411/SR411 Nature Gamma Probe
GJ-451/SGJ-451 Cement Bond Probe
X411/SX411 Three-lateral Resistivity Probe
S524/SS524 Acoustic Wave Probe
JCS-1/SJSC-1 Digital Inclination Probe
J511/SJ511 Big-hole Caliper Prob
W422/SW422 Temperature and Liquid Resistivity Combined Probe
J411/SJ411 Caliper Probe
H411/SH411 Magnetic Susceptibility Probe
NP442 Multi-Channel Spectrum Probe
Z422/SZ422 Neutron Combined Probe
LLY-1/SLLY-1 Flow Probe
Y411 Fluorescence Probe
