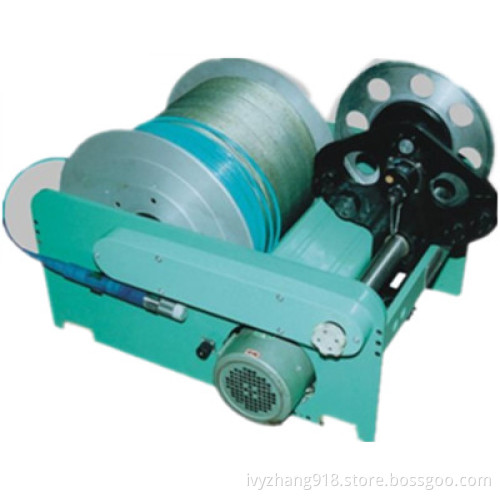

Geophysical Cable Winding Winch, Electric Winch`, Well Log Winch 500m

JCH Series Automatic Cabe Winding Winch

Main Applications and Features
1 Adopt advanced frequency conversion technology to control the winch
2 Automatic constant speed and manual speed control, automatic overload protection
3 Automatic addition and subtraction to calculate the depth, with depth error automatic compensation.
4 Use of commercial power or AC power generator
5 Self-locking function while winch ascending and descending
6 Steady in velocity without jitter in full speed range

Technical Specifications

1. Speed Range: 1~29.9 m/min
2. Depth Error: ≤ 0.4‰
3. Depth Range: 0~9999.99 m
4 Power Supply: AC220V± 10% 50Hz ± 5%
5. Continuous Working Time: ≤ 24 hr
6. Depth Pulse Equivalent: 0.25mm/pulse
7. Working Temperature: -10° C~ +70° C
8. Volume: 305× 200× 220mm,
9. Weight: <3kg
10. Power Consumption: <1.5kW
11. Constant Speed Range: 0.5~20m/min, Error: ± 10%, ± 1 digit
