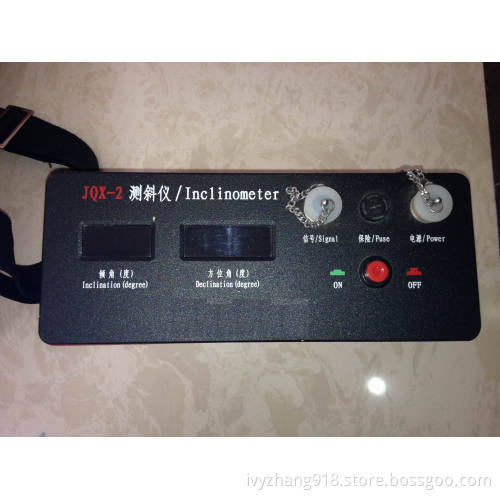

JQX-2 Portable Digital Inclinometer

Main Applications and Features
Digital inclinometer is a new high-precision inclinometer system which consists of ground instrument, probe, cable and other components. It is widely used in measurement of vertex and azimuth for various types of geological drilling.

Widely used in measurement of vertex and azimuth for various types of geological drilling.
Direct-reading of vertex and azimuth
Digital display, point measurement or continuous measurement
Simple, reliable operation,

Vertex Coverage	0~60°
Vertex Accuracy	≤ 0.1°
Azimuth Coverage	0~360°
Azimuth Accuracy	±4° (Vertex ≥ 3°), ±6° (2° ≤ Vertex ≤ 3°)
Working Temperature	0~85
Probe Outline Dimension	φ42×1000 mm
Ground Instrument Dimension	240×95×140mm
Probe Weight	2 Kg (weighing bar 5 Kg)
Probe Downhole Length	≤1000
