Product Description

GYGD Borehole Inspecion Camera

Main application:
Stratum structure divide
Well wall stratum crack
Karst development discrimination
Distinguish fractured development zone
Determine the karst distribution position
Long time underground borehole monitoring

Features:
Real time video, collect, record
Clearly image show on ground instrument
Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole
Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,
oceaneering

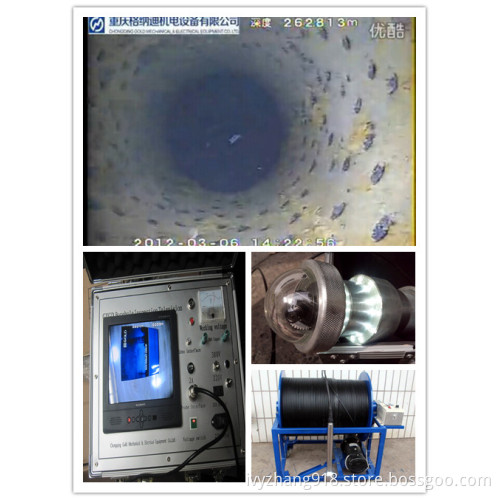

System component:
Ground displayer, camera probe, manual/electrical winch with cable, DVR, Wellhead pulley

Borehole Inspection Camera for Underwater Well

No.	Product Configurations	Dimension	Specification
1	Camera Probe	Dia.: 50/80mm Length:470mm	(1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 20Mpa (can be under 2000m deep water) (4) Light: 6-12 LED Lights
2	Camera		(1) Japan SONY inductor 1/3'' CCD, (2) Image definition is HD 850 TVL (3 Watertight (4) Camera Angle: 360 degree
3	Professional cable	Length: 0-2000m (optional)	(1) With steel wire, (2) Tension is 150kg, (3) Destroy tension is 260kg
4	Main Control Unit		(1) 220V/380V/12V optional. (2) Aircraft grade aluminum alloay case
5	Downhole Pulley		With counter
6	Logging Winch		Hand/Electrical winch
7	HD DVR		With SD card
