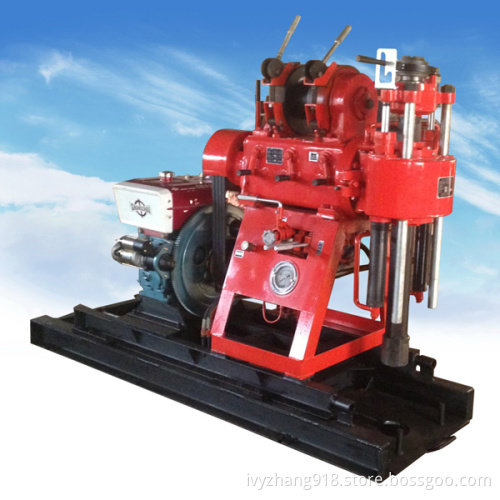

Cheap Hydraulic Drilling Machine

Suit scope:
Geology general check exploration, Earth physics exploration,Road and high layer building ground survey,Well,last opening et cetera drilling engineering

1,Unity machine parameter
Drilling depth.....................200m
Maximum open hole caliber..............400mm
End hole caliber.....................75mm
Drill rod caliber......................50mm
Drilling angle..................... 90~75
Drill weight(No include power)..........760kg
Unity machine dimensions ............2.75X0.95X1.60m


2,Spindle
Spindle speed.......................71.142.310.620r/min
Spindle stroke........................450mm
3,Hoist
Max.xingle line hoisting capacity...........2008Kb
Reel lifting speed..................17,35,75,160rm/s
Tightrope caliber....................13mm
Tightrope cubic measure................35mm
Hug follgate belt width.................70mm

4,Mud pump
Type:Horizontal single urn twin-action
Displacement.......................180L/min
Maximum pressure...................1.5Mpa
Work pressure.......................0.7Mpa
Water inlit caliber.......................50mm
Water to exit caliber....................45mm

5.Power
Dieselengine........................22HP
Speedlimit............................2200r/min
Electric motor........................15kw
Speedlimit.............................1460r/min
