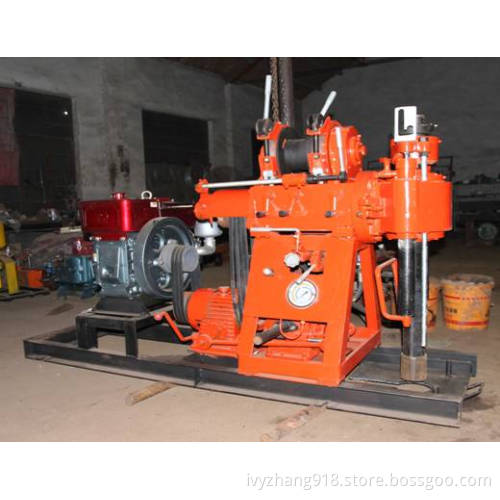

100m Hydraulic Core Drill Rig

Usage:
It is a hydraulic feeding of low speed high torque lightweight rig.

1, The drill is suitable for railway, hydropower, transportation, bridges, dam building and other engineering geological investigation.

2, Geological core drilling, physical survey.

3, Small grout holes, blast hole drilling.

4 Small wells drilled.

Drilling depth(m)	110
Max open hole diameter(mm)	219
End hole diameter(mm)	73
Hydraulic pump pressure(Mpa)	1.2
Hydraulic pump rotary speed (r/min)	1500
Spindle speed(r/min)	142,285,570
Spindle stroke(mm)	450
Hoisting capacity(KN)	9.8
Steel wire diameter(mm)	9.3
Max pressure(Mpa)	1.2
Working pressure(Mpa)	0.7
Displacement(L/min)	100
Power	S1100 diesel engine, 10kw motor
