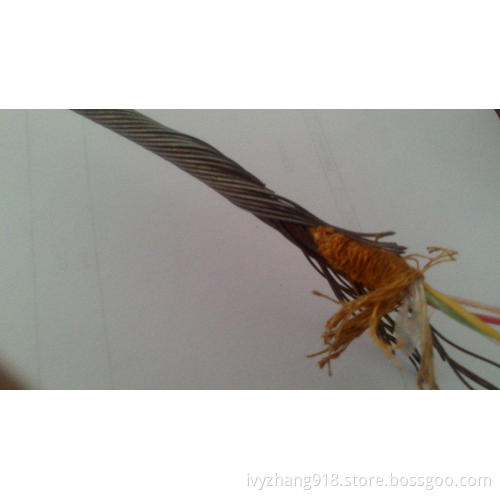

Construction:

Copper Construction: 6×0.20+1×0.21 mm 6×0.0078+1×0.0082"

Insulation PP : 0.19 mm 0.00748"

Protection: 3.00 mm 0.118"

Armor: (Inner) 18×0.47 mm(324N) 12×0.0185"(72.8lbs)

             (Outer) 18×0.64 mm(601N) 18×0.0251"(135lbs).

Physical:

Cable Diameter: 4.70mm±0.10mm 0.18±0.0039

Cable Weight in Air: 85 kg/km 57.4 lbs/kft

Temp Rating: 150 °C 300 °F

Mechanical:

Cable Breaking Strength: 13 kN 2900 lbs

Minimum Shave Diameter: 260 mm 10.5

Cable Stretch Coefficient: 4.78 m/km/5kN 4.25 ft/kft/klbs

Electrical:

Voltage Rating: 200 VDC 200 VDC

Insulation Resistance: 500 MΩ·km 1500 MΩ·kft

Resistance Typical: 84.3 Ω/km 25.6Ω/kft

Capacitance @ 1 kHz: 190 pf/m 58 pf/ft.
