Winch Jch Geophysical Well Logging Automatic Winch and Logging Winch

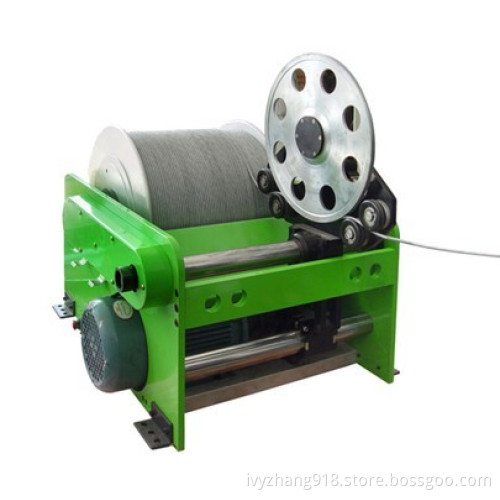

Winch JCH Geophysical Well Logging Automatic Winch

SPECIFICATION:

Adopt advanced frequency conversion technology to control the winch

FEATURES:

Automatic constant speed and manual speed control, automatic overload protection
Automatic addition and subtraction to calculate the depth, with depth error automatic compensation.
Use of commercial power or AC power generator
Self-locking function while winch ascending and descending
Steady in velocity without jitter in full speed range

TECHNICAL SPECIFICATIONS:

Speed Range: 1~29.9m/min
Depth Error: ≤ 0.4 ‰
Depth Range: 0~9999.99m
Power Supply: AC220V ± 10% 50Hz ± 5%
Continuous Working Time: ≤ 24hr
Depth Pulse Equivalent: 0.25mm/pulse
Working Temperature: -10° C~+70° C
Volume: 305*200*220mm
Weight: <3kg
Power Consumption: <1.5kW
Constant Speed Range: 0.5~20m/min, Error: ± 10%, ± 1 digit
