Product Description

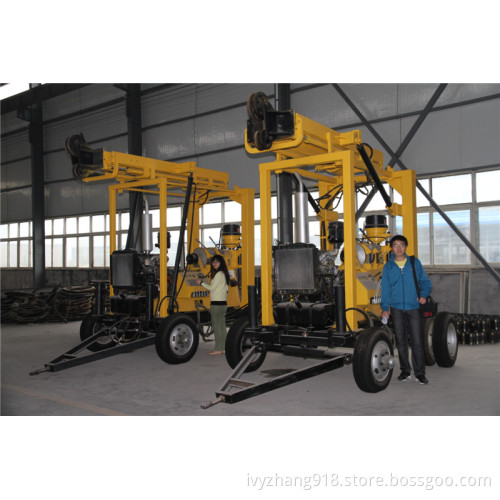

XYX-3 trailer-mounted water well drilling rig

Main applications:
XYX-3 drilling rig is mainly used forgeological general investigation and exploration, road and tall hole drilling and driect grouting, civil wells and earth temperature central air-conditioner, etc

A. Equipped with wheel undercarrigae device and hydraulic suppeot cylinder, it's very convenient for transport and adjusting the drilling rig level
B. Hydraulic oil pressure feed device, improves drilling efficiency
C. Equipped with normally closed hydraulic chuck, operation is flexible and reliable
D. Pressure gauge display the condition of the bottom of the drill hole
E. Drill mast controlled by hydraulic cyliner, improve the efficiency
F. Diesel engine adopt the electric starter, to reduce the labor itensity

Drilling depth	m			100		250		300	600
Drilling DI	mm			300		200		150	75
Open hole DI	mm			300
End hole DI	mm			75
Drilling rod	mm			Φ60
Drilling angle				90°-65°
Rotary Spindle
Spindle forward speed					r/min			30-1050
Spindle reverse speed					r/min			29-137
Spindle stroke					mm			560
Spindle inner diameter					mm			96
Spindle lifting capacity					KN			60
Main Winch ( drive hydraulic system)
Single line lifting speed							m/min	0-45
Hug floodgate belt width							mm	90
Tightrope diameter							mm	14
Hoist single line lifting capacity							KN	40
Roller diameter							mm	200
Roller cubic measure							m	30
Mud pump
Horizontal Triplex BW-250 mud pump
Displacement			L/min					250
Work pressure			Mpa					7
Water inlet caliber			mm					75
Water to exit caliber			mm					50
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement , pressure								63mL/r 20Mpa
Behind displacement , pressure								25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp						4100# 50HP
Electric motor		KW						Y180L-4 22KW
