JQX-2 Best Selling Digital Inclinometer For Drilling Hole Inclination Survey

Main Applications:

Detecting zones of movement and establish whether movement is constant, accelerating, or responding to remedial measures.
Checking that deformations are within design limits, that struts and anchors are performing as expected, and that adjacent buildings are not affected by ground movements.
Verifying stability of dams, dam abutments, and upstream slopes during and after impoundment.
Monitoring settlement profiles of embankments, foundations, and other structures (horizontal and vertical inclinometer).
System component:

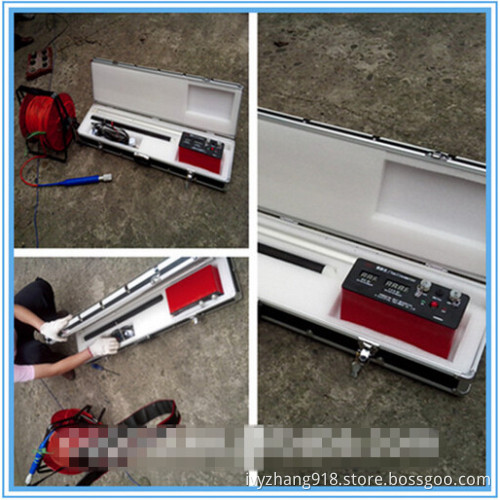

Main instrument, probe, cable and other components

Features:

Direct-reading of vertex and azimuth
Digital display, point measurement or continuous measurement
Simple, reliable operation
The inclinometer can accurately provide the apex Angle of drilling (drilling shaft axis and the vertical direction Angle) and azimuth (well drilling shaft in the horizontal plane projection Angle and direction of magnetic north clockwise)



Vertex Coverage 0~60°
Vertex Accuracy ≤ 0.1°
Azimuth Coverage 0~360°
Azimuth Accuracy ±4° (Vertex ≥ 3°), ±6° (2° ≤ Vertex ≤ 3°)
Probe Outline Dimension φ42×1000 mm
Ground Instrument Dimension 240×95×140mm
Probe Weight  2 Kg (weighing bar 5 Kg)
Probe Downhole Length  ≤1000
Vertex Coverage 0~60°
