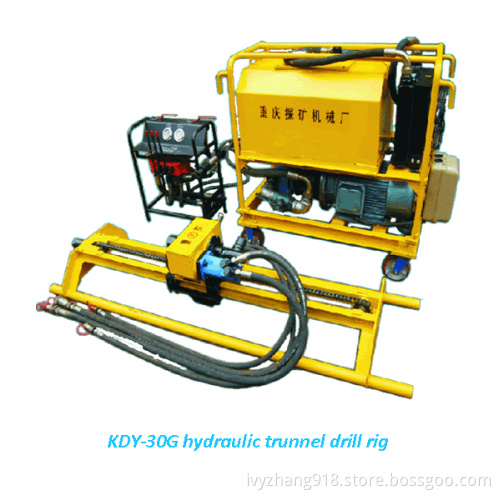

Kdy-30g Multi-Function Hydraulic Tunnel Drilling Rig with Diamond Bit

APPLICATIONS:
KDY-30G hydraulic drill rig is a multi-function drill rig developed facing drilling grouting hole for hydro-power station. It also can be used for drilling the hole of support, penetration-proof, blasting; And treating dangerous rock and hillside. It is mainly suitable for drilling hard rock with diamond bit and PDC bit, and DTH drilling as well.

MAIN FEATURES:
· Reasonable specification, assure more efficiently drilling;
· Fully hydraulic drive, top-drive head rotation, feed and hoist are all done by ration pump and ration motor which composite independent open hydraulic system, it is simple, advance, easy to use and maintain;
· The main hydraulic components are from world famous hydraulic manufacturers, two-step filtering, to assure the reliability of the hydraulic system;
· Light weight, easy to move, re-assembly and maintain. Especially suitable for drilling in tunnel and on the frame.

SPECIFICATIONS:
1. Drilling method: Diamond drill bit, PDC bit, and DTH drilling
2. Drilling capacity: 50 m -20 m
3. Drill hole dia.: Φ 56-Φ 91 mm
4. Drill rod: Φ 50 x 1000 mm
5. Top-drive head: Stroke: 1200 mm; Max. Push/pull force: 20 kN;
6. Top-drive head speed:
(with motor of 100ml/r) Speed I: 0-700r/min; Speed II: 0-350r/min
(with motor of 305ml/r) Speed I: 0-230r/min; Speed II: 0-115r/min
7. Top-drive head torque:
(with motor of 100ml/r) Speed I: 215 N. M; Speed II: 430 N. M
(with motor of 305ml/r) Speed I: 655 N. M; Speed II: 1300 N. M
8. Drilling angle: Any angle;
9. Power: Normal one with 15 kW. Other one according client needing.
