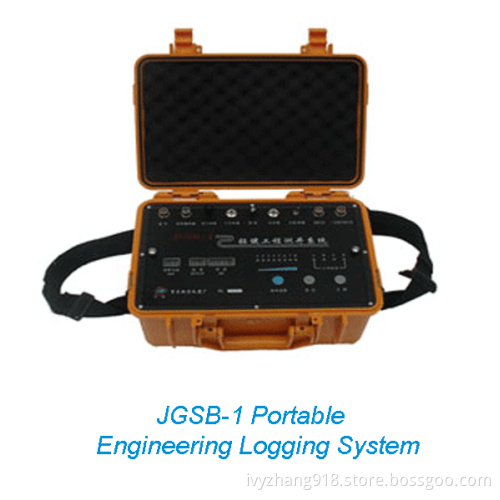

Jgsb-1 Portable Engineering Well Logging Instrument

Applications and Feature

· JGSB-1 type portable engineering logging system is particularly designed for deep engineering geophysical exploration logging of intermediate and superficial parts, which can be connected to the digital logging system of probes with various parameters. With a variety of measuring parameters and strong targeting capability, it is widely used in engineering geology, hydrological survey of water conservancy and hydroelectric power, railways, highways, municipal infrastructure, electricity, transportation, urban construction surveying and other related industries.
· Use 12V DC or 220V AC as working power, the whole power consumption is only 10W
· Light in Weigh, Applicable: The winch uses φ 4.0 three-core armed cables to allow reduction in volume and weight. By using advanced electronic technology to shorten the length, and reduce the weight. Convenient in carrying-over. Can be widely used in construction area with inconvenient traffic and complicated environment like high mountains, waterways, etc.
· Stable and Reliable: The system uses high-quality devices and program module to reduce the use of separate components, thus enhances the stability and reliability of system operation.

Technical Specifications

· 12bit A/D Conversion, Program-Controlled Magnification K=0.5~128
· Counting Channel: F≤ 500KHz
· Digital Signal Transmission Frequency: 9600bit/s
· Power Supply Cycle: 400ms
· Current: 2mA~500 mA Optional
· Signal Input Range: ≤ ± 10V
· Continuous Working Time: ≤ 24 hr
· Power Consumption: <200W
· Volume: 420× 260× 210mm,
· Weight: <7Kg
· Working Temperature Range: -10~ +50
· Working Power Supply: AC220V± 10% 50Hz ± 5%
· Logging Speed: 0~30 m/min Adjustable (as per sampling interval)
